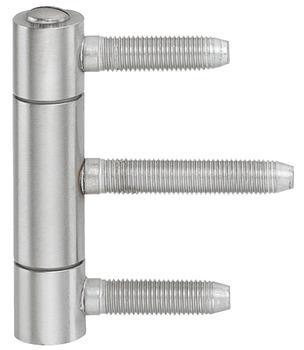

Drill-in hinge, Simonswerk BAKA C - 922.11.090
Drill In Hinges

Drill-in hinge, Simonswerk BAKA C - 922.11.090

HAFELE

Drawing Files Technical Documents

Drill-in hinge, Simonswerk BAKA C - 922.11.090 by Hafele — a reliable solution for door mounting.

Properties

Product Code: 922.11.090
Category: Drill In Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 8.6
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_ENG
  • Güvenlik Notları--Security Notes
  • 922.11.090_Safety notes
  • ISO_27001_TR
  • ISO_27001_ENG
  • ISO_9001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

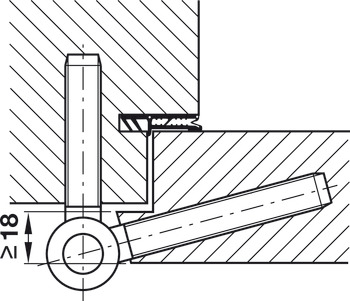

The Drill-in hinge, Simonswerk BAKA C - 922.11.090 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and right-hand use, ensuring compatibility with various installations. With an overlay distance of ≥18 mm, it provides an excellent fit, while the 20 mm knuckle diameter and 10 mm radius add to its robust design.

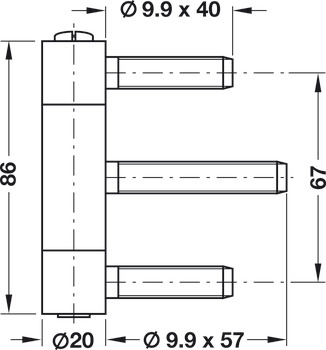

Ideal for wooden door leaves, this hinge works seamlessly with wooden frames and can support a maximum door weight of 100 kg. The 86 mm knuckle length, combined with a 20 mm router bit, allows for a drill hole diameter of 8.8 mm, ensuring precise installation. The friction bearing design is maintenance-free, enhancing its usability.



The Drill-in hinge, Simonswerk BAKA C - 922.11.090 stands out with its reliability and durability, making it a preferred choice for architectural projects.
