Drill In Hinges

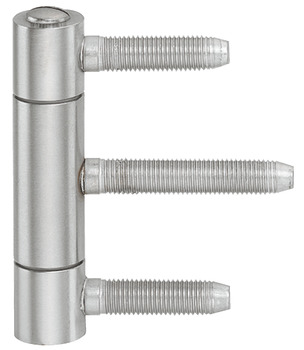

Drill-in hinge, Simonswerk BAKA C - 922.10.903

HAFELE

Download Product ID Card

Download Product Files

Drill-in hinge, Simonswerk BAKA C - 922.10.903 by Hafele — A reliable solution for door installations.

Properties

Product Code: 922.10.903
Category: Drill In Hinges

Material Properties

Used Material:
Stainless steel
Durability:
Corrosion resistance

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): 2
Height (cm): 2
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR
Güvenlik Notları--Security Notes
922.10.903_Safety notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

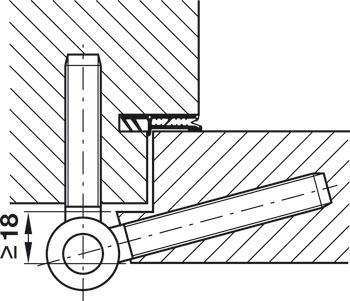

The Drill-in hinge, Simonswerk BAKA C - 922.10.903 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right-hand use, compatible with an overlay distance of 18 mm or more. With a knuckle diameter of 20 mm and a radius of 10 mm, it is ideal for wooden door leaves. Its durable material ensures long-lasting performance.

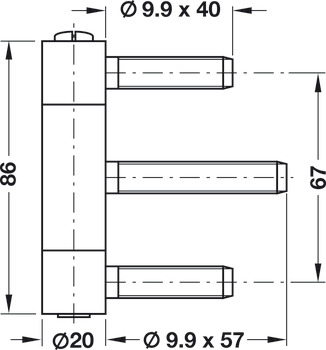

In terms of performance, the maximum door weight for two hinges is 100 kg. The knuckle length of 86 mm works with a router bit of 20 mm. Designed for a drill hole diameter of 8.8 mm, this hinge operates with friction bearings, requiring no maintenance. Additionally, it features an optional security pin for outward-opening doors.

The Drill-in hinge, Simonswerk BAKA C - 922.10.903 stands out for its durability and reliability. This product is an excellent choice for door installations.
