Drill In Hinges

Drill-in hinge, Simonswerk BAKA C 2-15 WF - 922.10.590

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Drill-in hinge, Simonswerk BAKA C 2-15 WF - 922.10.590 by Hafele — An excellent solution for door hinges.

Properties

Product Code: 922.10.590
Category: Drill In Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 7.5
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_ENG
Güvenlik Notları--Security Notes
922.10.590_Safety notes
ISO_27001_TR
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

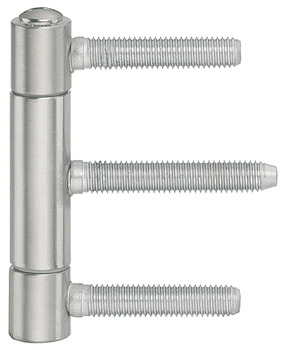

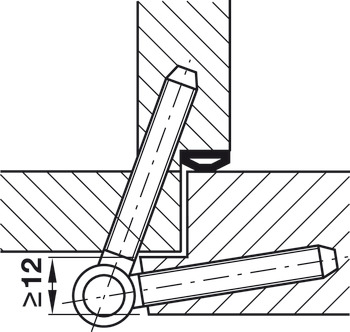

The Drill-in hinge, Simonswerk BAKA C 2-15 WF - 922.10.590 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right hand use, offering flexibility in installation. With an overlay distance of 12 mm, it provides a seamless fit for various door types. The 15 mm knuckle diameter ensures a robust connection, allowing doors to open and close securely.

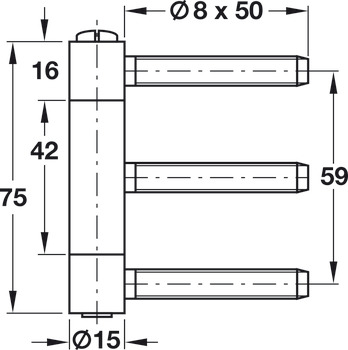

It is suitable for wooden door leaves and pairs perfectly with wooden frames. Capable of supporting a maximum door weight of 60 kg with two hinges, it is built for durability. The 75 mm knuckle length enhances its strength, while the 6.8 mm drill hole diameter simplifies the installation process. Featuring friction bearings, it operates maintenance-free, ensuring long-lasting performance.

This product stands out with its high-quality materials and excellent engineering design, making it a reliable choice in the door hinge market.
