Drill In Hinges

Drill-in hinge, Simonswerk BAKA C 1-15 WF - 922.10.390

HAFELE

Drill-in hinge, Simonswerk BAKA C 1-15 WF - 922.10.390 by Hafele — A reliable and durable solution for door installations.

Properties

Product Code: 922.10.390
Category: Drill In Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 7.5
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_ENG
922.10.390_Safety notes
ISO_27001_TR
ISO_9001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

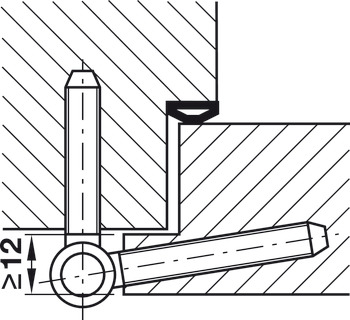

The Drill-in hinge, Simonswerk BAKA C 1-15 WF - 922.10.390 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right-hand use, providing flexibility with an overlay distance of 12 mm or more. With a knuckle diameter of 15 mm, it is ideal for wooden door leaves.

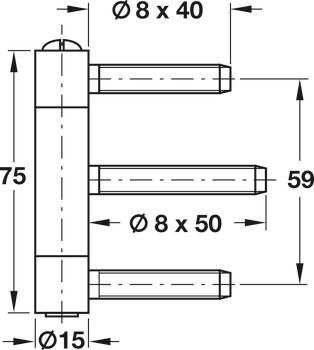

Engineered for durability, it features a maintenance-free friction bearing system. The 75 mm knuckle length supports a maximum door weight of 60 kg with two hinges. The required drill hole diameter is 6.8 mm, making installation straightforward. This hinge combines both aesthetic appeal and functional excellence.

The Drill-in hinge, Simonswerk BAKA C 1-15 WF - 922.10.390 stands out for its reliability and durability, designed to meet the needs of users effectively. This product from Hafele is an excellent choice for both aesthetic and functional requirements.
