Drill In Hinges

Drill-in hinge, SFS intec 12R - 922.22.690

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Drill-in hinge, SFS intec 12R - 922.22.690 by Hafele — an ideal solution for door applications.

Properties

Product Code: 922.22.690
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 11.2
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.22.690_Safety notes
ISO_9001_TR
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

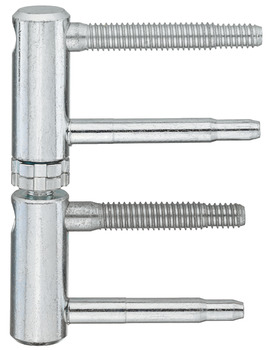

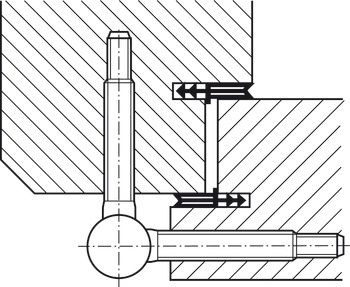

The Drill-in hinge, SFS intec 12R - 922.22.690 by Hafele represents a refined fusion of quality and functionality. Designed with a white finish and zinc plating, this hinge is perfect for wooden doors. Constructed from durable steel, it features a knuckle diameter of 20 mm, making it suitable for both DIN left and right-hand applications, and can accommodate an additional overlay seal.

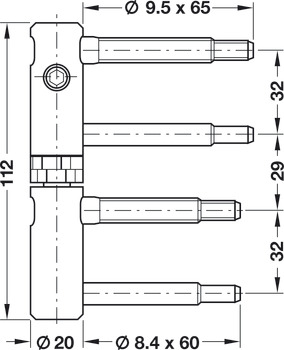

With impressive performance, this hinge can support a maximum door weight of 100 kg with two hinges and 150 kg with three hinges. The knuckle length of 112 mm and its friction bearing design ensure maintenance-free operation. Additionally, it comes with an optional security pin for outward opening doors. Users can enjoy the convenience of side adjustment of -2/+3 mm, height adjustment of -2/+3 mm, and closing pressure adjustment of -2/+3 mm.

The Drill-in hinge stands out with its high-quality materials and functionality, making it a preferred choice for door applications.
