Drill In Hinges

Drill-in hinge, SFS intec 12R - 922.22.590

HAFELE

Download Product ID Card

Download Product Files

Drill-in hinge, SFS intec 12R - 922.22.590 by Hafele — a reliable and durable hinge solution for wooden doors.

Properties

Product Code: 922.22.590
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 11.2
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
922.22.590_Safety notes
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

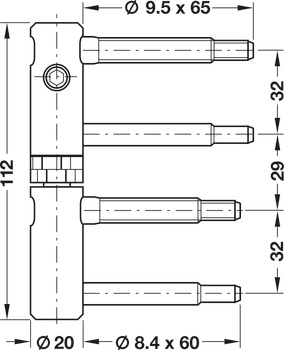

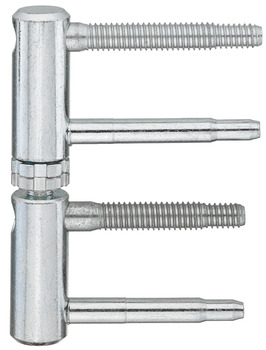

The Drill-in hinge, SFS intec 12R - 922.22.590 by Hafele represents a refined fusion of quality and functionality. Made from white zinc-plated steel, this hinge is suitable for both DIN left and right-hand use. Its design allows for additional overlay seal, enhancing its utility. With a knuckle diameter of 20 mm and a knuckle length of 112 mm, it provides a robust structure.

Featuring a friction bearing, this hinge is maintenance-free, ensuring longevity and reliability. It can support a maximum door weight of 100 kg with two hinges and 150 kg with three hinges. Additionally, it offers an optional security pin for outward opening doors, enhancing safety. The adjustment facilities include side adjustment of -2/+3 mm, height adjustment of -2/+3 mm, and closing pressure adjustment of -2/+3 mm.

With its robust construction and practical adjustment options, the Drill-in hinge stands out as an excellent choice for anyone seeking reliable solutions for wooden doors.
