Drill In Hinges

Drill-in hinge, SFS intec 12R - 922.22.390

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Drill-in hinge, SFS intec 12R - 922.22.390 by Hafele — An ideal hinge solution for wooden doors.

Properties

Product Code: 922.22.390
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 11.2
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.22.390_Safety notes
ISO_9001_ENG
ISO_27001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

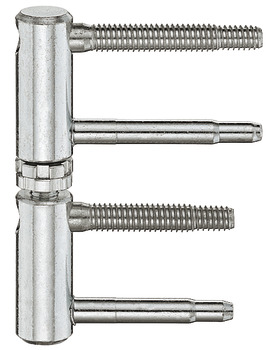

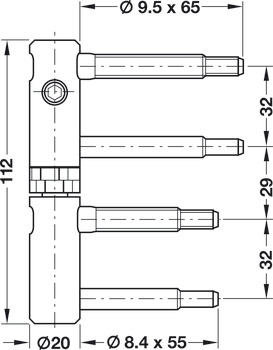

The Drill-in hinge, SFS intec 12R - 922.22.390 by Hafele represents a refined fusion of quality and functionality. With its white and zinc-plated finish, it offers an aesthetic appeal while being made of durable steel. The 20 mm knuckle diameter ensures a secure connection, while the 112 mm knuckle length allows for smooth door operation.

Featuring a friction bearing design, it requires no maintenance, making it a convenient choice for users. An optional security pin is available for outward opening doors, adding an extra layer of safety. The hinge allows for side adjustment of -2/+3 mm, height adjustment of -2/+3 mm, and closing pressure adjustment of -2/+3 mm for user-friendly installation.

With its durability and functionality, the Drill-in hinge SFS intec 12R stands out as an excellent choice for wooden doors.
