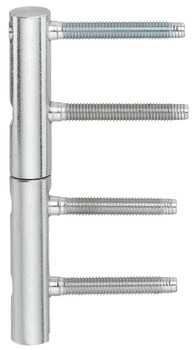

Drill-in hinge, Anuba Triplex 217-3D SM-RA - 922.60.190

HAFELE

Drill-in hinge, Anuba Triplex 217-3D SM-RA - 922.60.190 by Hafele — Provides excellent durability and functionality for door applications.

Properties

Product Code: 922.60.190
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 13
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.7

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_9001_ENG
922.60.190_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Drill-in hinge, Anuba Triplex 217-3D SM-RA - 922.60.190 by Hafele represents a refined fusion of quality and functionality. This hinge is suitable for both DIN left and DIN right-hand use, designed with a threaded coupling for a permanently straight-positioned hinge top part. Its white and zinc-plated finish not only enhances aesthetics but also ensures long-lasting durability thanks to its steel construction.

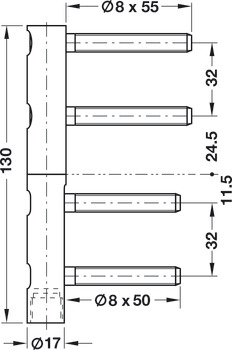

Performance-wise, it supports a maximum door weight of 90 kg with two hinges and 120 kg with three hinges. The knuckle length of 130 mm and knuckle diameter of 17 mm ensure a robust structure, while the 7 mm drill hole diameter facilitates easy installation. The self-lubricating sintered metal bearing design allows for smooth operation.

The Drill-in hinge, Anuba Triplex 217-3D SM-RA - 922.60.190 is certified in compliance with EN 1935:2002 standards. This product stands out in the market for its high durability and functionality, making it a reliable choice for various door applications.
