Drill-in hinge, Anuba Triplex 217-3D SM-FR - 922.60.090
Drill In Hinges

Drill-in hinge, Anuba Triplex 217-3D SM-FR - 922.60.090

HAFELE

Download Product Files

Drill-in hinge, Anuba Triplex 217-3D SM-FR - 922.60.090 by Hafele — A reliable solution for door installations.

Properties

Product Code: 922.60.090
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 13
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.7

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 922.60.090_Safety notes
  • ISO_27001_TR
  • ISO_9001_ENG
  • ISO_9001_TR
  • ISO_27001_ENG
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

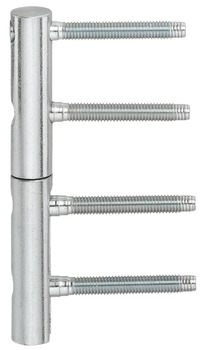

The Drill-in hinge, Anuba Triplex 217-3D SM-FR - 922.60.090 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right hand use, featuring a threaded coupling for a permanently straight positioned hinge top part. It comes in a sleek white color with a zinc plating finish, crafted from durable steel material.

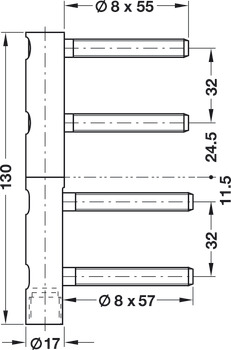

With a knuckle diameter of 17 mm and a knuckle length of 130 mm, this hinge can support a maximum door weight of 90 kg for two hinges and 120 kg for three hinges. It is suitable for a drill hole diameter of 7 mm and utilizes a self-lubricating sintered metal bearing for smooth operation.



The Drill-in hinge, Anuba Triplex 217-3D SM-FR - 922.60.090 stands out for its reliability and long-lasting performance, making it a top choice for door installations.
