Drill In Hinges

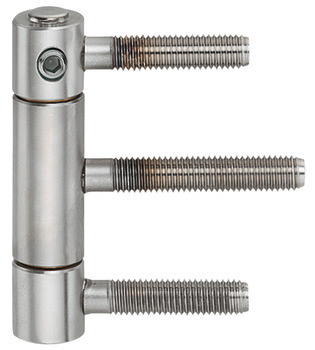

Drill-in hinge, Anuba Herkula 320 SM-RA/SM-FR - 922.43.703

HAFELE

Drill-in hinge, Anuba Herkula 320 SM-RA/SM-FR - 922.43.703 by Hafele — a reliable and durable hinge solution for your doors.

Properties

Product Code: 922.43.703
Category: Drill In Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.43.703_Safety notes
ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

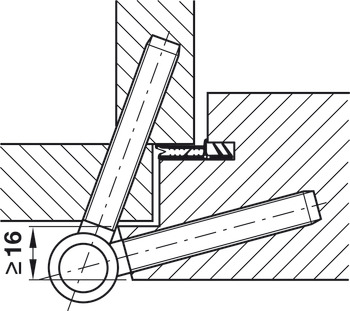

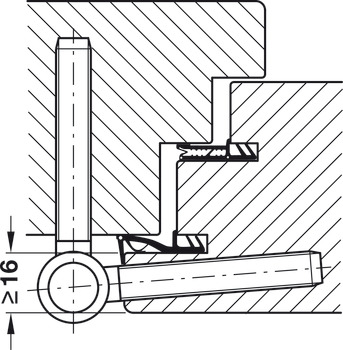

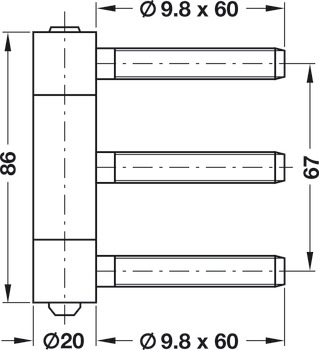

The Drill-in hinge, Anuba Herkula 320 SM-RA/SM-FR - 922.43.703 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right-hand use, with an overlay distance of ≥16 mm, making it ideal for door installations. With a knuckle diameter of 20 mm and a knuckle length of 86 mm, it provides a robust structure. Additionally, it can support door weights of up to 120 kg for two hinges and 150 kg for three hinges.

Compatible with the Herkula 315 GL-RA and Herkula 315 GL-FR model series, this hinge is specifically designed for wooden frames and is perfect for rebated wooden front doors. Its self-lubricating sintered metal bearing ensures long-lasting performance. It also features an optional security pin for outward-opening doors and allows for side adjustment of ±4 mm and closing pressure adjustment of ±4 mm.

The Drill-in hinge, Anuba Herkula 320 SM-RA/SM-FR stands out for its exceptional durability and high weight capacity, making it a reliable choice for your door needs.
