Drill-in hinge, Anuba Herkula 320 SM - 922.43.690

HAFELE

Download Product ID Card

Download Product Files

Drill-in hinge, Anuba Herkula 320 SM - 922.43.690 by Hafele — A reliable solution for door installations.

Properties

Product Code: 922.43.690
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): 2
Height (cm): 2
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_27001_ENG
922.43.690_Safety notes
ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

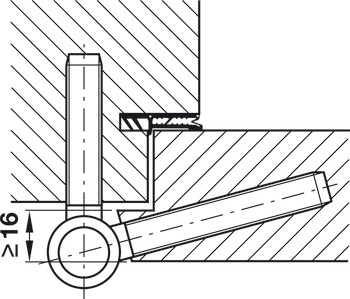

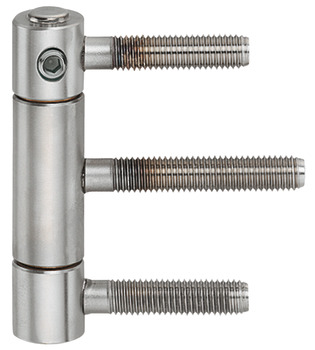

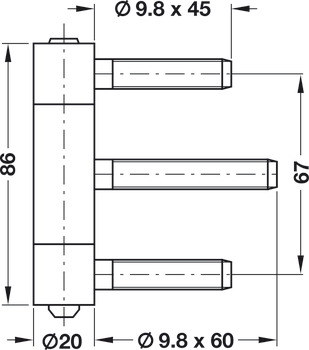

The Drill-in hinge, Anuba Herkula 320 SM - 922.43.690 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right hand use, featuring an overlay distance of ≥16 mm. With a knuckle diameter of 20 mm and a knuckle length of 86 mm, it provides durability and flexibility during installation. It is specifically crafted for wooden frames and rebated wooden front doors.

This product stands out with its ability to support a maximum door weight of 120 kg with 2 hinges and 150 kg with 3 hinges. The drill hole sizes of 7.7 mm and 8.7 mm facilitate an easy installation process. The self-lubricating sintered metal bearing enhances the longevity of the hinge. Additionally, it comes with an optional fuse for outwards opening doors, featuring a security pin for added safety.

The Drill-in hinge, Anuba Herkula 320 SM, is distinguished by its reliability and durability. It is an essential choice for door installations.
