Drill In Hinges

Drill-in hinge, Anuba Herkula 320 SM - 922.43.603

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Drill-in hinge, Anuba Herkula 320 SM - 922.43.603 by Hafele — an excellent solution for door hinges.

Properties

Product Code: 922.43.603
Category: Drill In Hinges

Material Properties

Used Material:
Stainless steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): 2
Height (cm): 2
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG
922.43.603_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

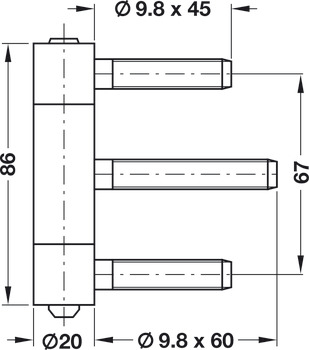

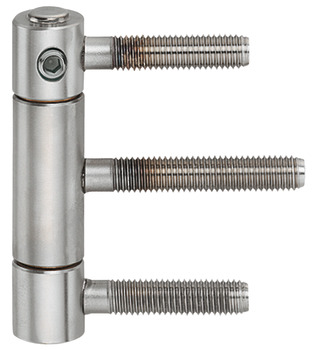

The Drill-in hinge, Anuba Herkula 320 SM - 922.43.603 by Hafele represents a refined fusion of quality and functionality. This hinge is made from durable stainless steel and is suitable for both DIN left and DIN right-hand use. With a knuckle diameter of 20 mm and a knuckle length of 86 mm, it provides secure mounting. It can support a maximum door weight of 120 kg with two hinges and 150 kg with three hinges, making it ideal for robust applications.

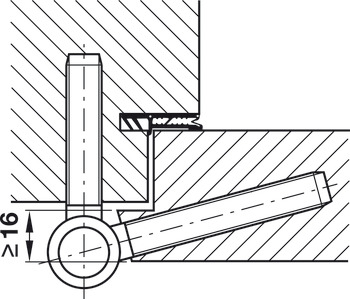

Designed with an overlay distance of ≥16 mm, it fits perfectly for wooden door leaves. The self-lubricating sintered metal bearing type ensures long-lasting performance, while the optional security pin for outward opening doors enhances safety. With side adjustment of ±4 mm and closing pressure adjustment of ±4 mm, it is user-friendly and easy to install.

The Drill-in hinge, Anuba Herkula 320 stands out with its robust design and high load capacity. Its durability and safety features make it a preferred choice for various applications.
