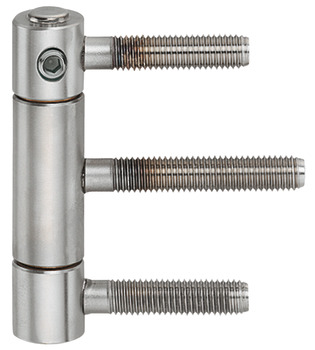

Drill-in hinge, Anuba Herkula 320 SM - 922.41.770

HAFELE

Drill-in hinge, Anuba Herkula 320 SM - 922.41.770 by Hafele — Ensures reliability and durability in door installations.

Properties

Product Code: 922.41.770
Category: Drill In Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 8.6
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
Güvenlik Notları--Security Notes
922.41.770_Safety notes
ISO_9001_TR
ISO_27001_ENG
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

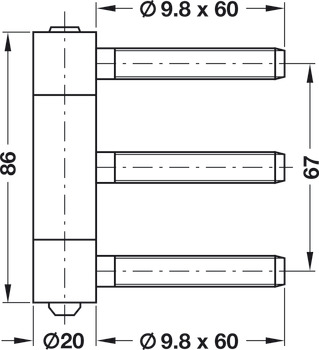

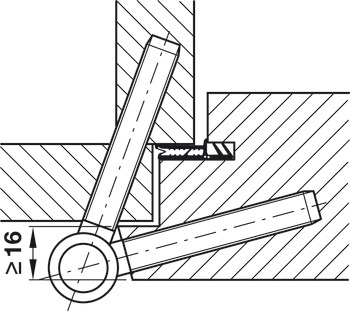

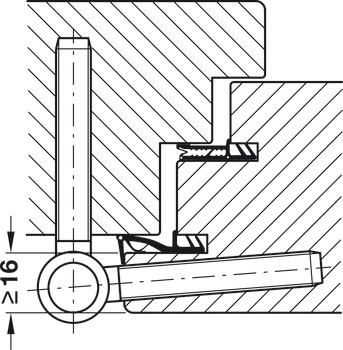

The Drill-in hinge, Anuba Herkula 320 SM - 922.41.770 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right hand use, providing flexibility in installation with an overlay distance of ≥16 mm. With a knuckle diameter of 20 mm and a length of 86 mm, it ensures robust performance. The product is ideal for rebated wooden front doors with wooden frames.

This hinge can support a maximum door weight of 120 kg with 2 hinges and 150 kg with 3 hinges. Its self-lubricating sintered metal bearing offers long-lasting performance, while the optional security pin provides extra safety for outward opening doors. The side adjustment of ±4 mm and closing pressure adjustment of ±4 mm allow for easy post-installation adjustments.

This product stands out with its ease of installation and high durability. The Drill-in hinge, Anuba Herkula 320 SM - 922.41.770 by Hafele is the ideal choice for users seeking reliability and longevity in door installations.
