Drill-in hinge, Anuba Herkula 315 GL-RA - 922.40.170
Drill In Hinges

Drill-in hinge, Anuba Herkula 315 GL-RA - 922.40.170

HAFELE

Drawing Files Technical Documents

Drill-in hinge, Anuba Herkula 315 GL-RA - 922.40.170 by Hafele — An ideal solution for door installations.

Properties

Product Code: 922.40.170
Category: Drill In Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 7.4
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 922.40.170_Safety notes
  • ISO_9001_ENG
  • Güvenlik Notları--Security Notes
  • ISO_9001_TR
  • ISO_27001_TR
  • ISO_27001_ENG
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

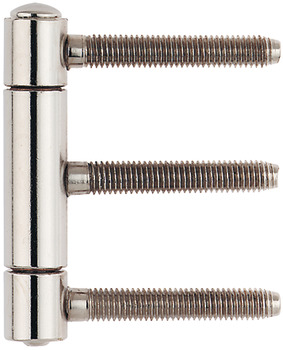

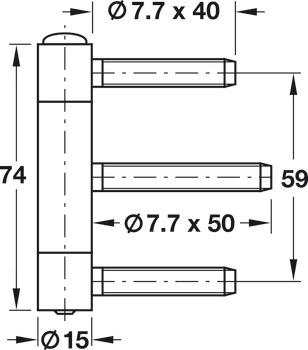

The Drill-in hinge, Anuba Herkula 315 GL-RA - 922.40.170 by Hafele represents a refined fusion of quality and functionality. This hinge is made from durable steel and is protected with a nickel plating. Its design accommodates both DIN left and DIN right hand usage, ensuring versatility. With a knuckle diameter of 15 mm and a length of 74 mm, it provides a reliable performance for door installations.

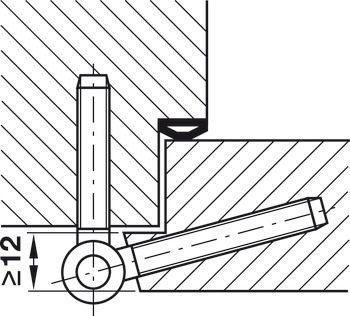

This hinge can support door weights up to 55 kg when two hinges are used. It is particularly suited for wooden frames and rebated wooden interior doors, making it an excellent choice for applications with low overlay thickness. The required drill hole sizes of 6.3 mm and 7.2 mm make installation straightforward. With friction bearings, it offers maintenance-free operation.



The Drill-in hinge, Anuba Herkula 315 GL-RA stands out with its robust construction and quality materials, making it a preferred choice for door installations.
