Cruciform mounting plateMetalla 510 SM, steel - 329.68.002

HAFELE

Cruciform mounting plateMetalla 510 SM, steel - 329.68.002 by Hafele — An excellent mounting solution for Metalla 510 concealed hinges.

Properties

Product Code: 329.68.002
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): 2
Width (cm): 3
Height (cm): 1
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_9001_TR
329.68.002_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

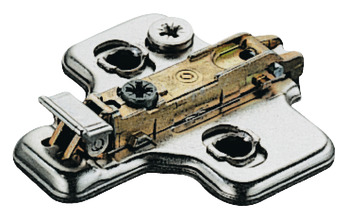

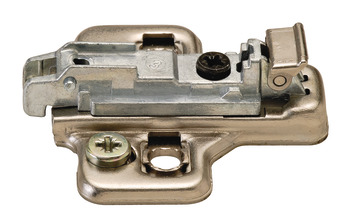

The Cruciform mounting plateMetalla 510 SM, steel - 329.68.002 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from steel and features a nickel plating that enhances its durability. Its design is tailored to simplify the mounting process and is user-friendly, thanks to its quick fixing system.

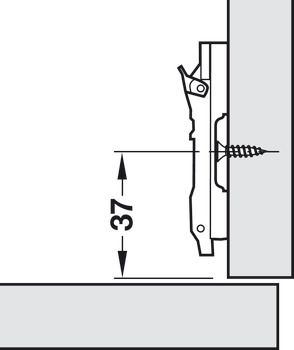

The product features a screw distance of 32 mm and an edge distance of 37 mm, making it adaptable to various mounting needs. Height and depth adjustments can be easily made via an eccentric mechanism, allowing for precise positioning. The quick fixing system SM enables users to complete their mounting tasks more efficiently.

The Cruciform mounting plate stands out for its ease of use and reliability in mounting processes. Combined with Hafele's quality, this product enhances the efficiency of users' installation tasks.
