Furniture Hinges

Cruciform mounting plateMetalla 100 A - 311.98.695

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Cruciform mounting plateMetalla 100 A - 311.98.695 by Hafele — An ideal mounting solution for wooden doors.

Properties

Product Code: 311.98.695
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 1
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_27001_TR
311.98.695_Safety notes
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

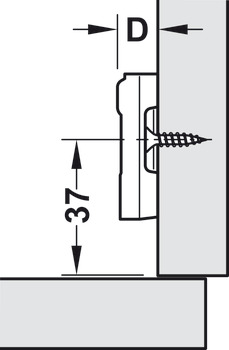

The Cruciform mounting plateMetalla 100 A - 311.98.695 by Hafele represents a refined fusion of quality and functionality. Made from durable steel and finished with nickel plating, this mounting plate is designed specifically for wooden doors, enhancing both aesthetics and performance. Its design incorporates a height adjustment feature via a ±2 mm slot, allowing for flexibility during installation. With a screw length of 10 mm and a screw distance of 32 mm, it provides a secure connection and ensures stability.

This product is equipped with a slide-on system A for easy mounting, and a distance of 4 mm enhances precision in installation. The mounting plate is compatible with Häfele Metalla 100 concealed hinges, making it a versatile choice for various applications.

The Cruciform mounting plateMetalla 100 A stands out due to its unique features, providing a reliable and efficient mounting solution for wooden doors.
