Cruciform mounting plate, With pre-mounted Euro screws - 348.38.523

HAFELE

Cruciform mounting plate, With pre-mounted Euro screws - 348.38.523 by Hafele — A reliable solution for quick and secure mounting in furniture applications.

Properties

Product Code: 348.38.523
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 1.3
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_27001_TR
ISO_9001_TR
Güvenlik Notları--Security Notes
348.38.523_Safety notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Cruciform mounting plate, With pre-mounted Euro screws - 348.38.523 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from durable steel and features a nickel plating that enhances its longevity. Designed specifically for use with Grass Tiomos concealed hinges, it offers a seamless integration that simplifies the installation process. The pre-mounted Euro screws save time, making the assembly process more efficient.

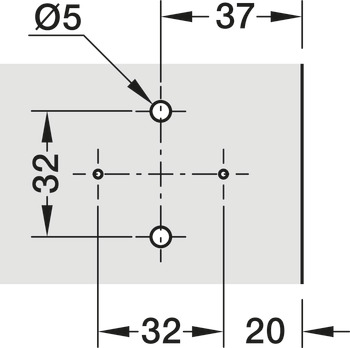

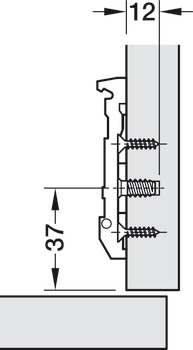

With a drill hole diameter of 5 mm and a drilling depth of 12 mm, this plate provides flexibility in mounting options. The screw length of 13.50 mm and a screw distance of 32 mm ensure a secure connection during installation. Additionally, the edge distance of 37 mm allows for greater adaptability in various mounting scenarios. The height adjustment feature, enabled by a worm gear, allows for a ±2 mm adjustment, facilitating precise alignment during installation.

The Cruciform mounting plate stands out for its ease of use and reliable connections, making it an essential tool for efficient furniture assembly.
