Furniture Hinges

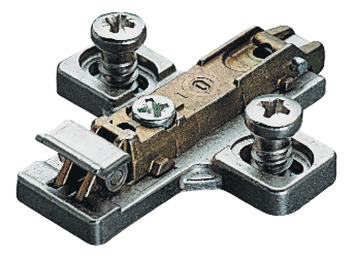

Cruciform mounting plate Metalla 510 SM - 329.73.628

HAFELE

Cruciform mounting plate Metalla 510 SM - 329.73.628 by Hafele — an ideal solution for concealed hinges ensuring durability and ease of installation.

Properties

Product Code: 329.73.628
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_27001_ENG
329.73.628_Safety notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

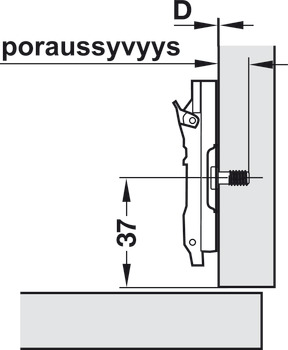

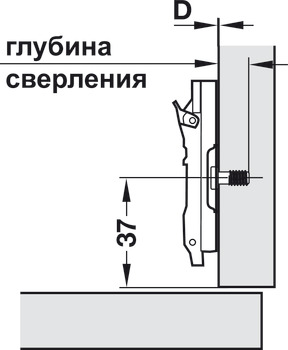

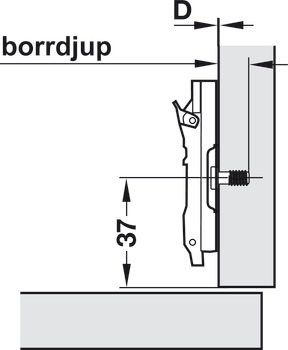

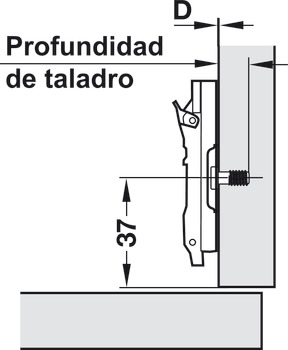

The Cruciform mounting plate Metalla 510 SM - 329.73.628 by Hafele represents a refined fusion of quality and functionality. This mounting plate is crafted from zinc alloy and features a nickel-plated finish for enhanced durability. With a drill hole diameter of 5 mm and a center panel thickness of 16 mm, it ensures perfect compatibility. The screw distance of 32 mm and edge distance of 37 mm facilitate easy installation.

Designed with an adjustment facility, it offers height adjustment via a slot of ±2 mm and depth adjustment through an eccentric system. The quick fixing system SM allows for rapid installation, while the mounting plate version is equipped with pre-mounted Euro screws for added convenience.

This mounting plate stands out due to its unique combination of features, making it a reliable choice for any installation needs.
