Furniture Hinges

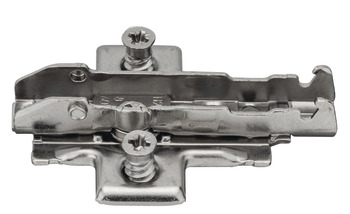

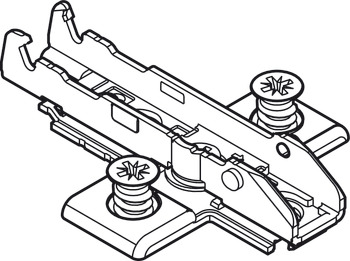

Cruciform mounting plate, With pre-mounted Euro screws - 348.38.521

HAFELE

Cruciform mounting plate, With pre-mounted Euro screws - 348.38.521 by Hafele — A perfect mounting solution for Grass Tiomos hinges.

Properties

Product Code: 348.38.521
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 1.3
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_9001_ENG
ISO_27001_ENG
348.38.521_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

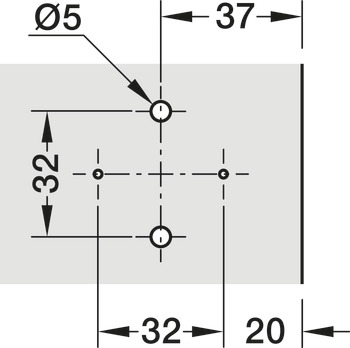

The Cruciform mounting plate, With pre-mounted Euro screws - 348.38.521 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from robust steel and features a nickel-plated finish for enhanced durability. With a drill hole diameter of 5 mm and a drilling depth of 12 mm, it simplifies the installation process. The pre-mounted Euro screws allow for a quicker setup, providing a user-friendly experience.

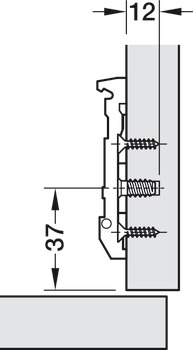

Designed with a screw length of 13.50 mm and a screw distance of 32 mm, it ensures secure mounting with an edge distance of 37 mm. Additionally, the height adjustment facility via a worm gear allows for ±2 mm adjustment, catering to various installation needs. The clip system facilitates easy installation, making it specifically suitable for the Grass Tiomos model series.

The Cruciform mounting plate stands out by offering a reliable and efficient solution for mounting needs, ensuring a seamless installation experience.
