Cruciform mounting plate, With pre-mounted Euro screws - 329.71.510

HAFELE

Cruciform mounting plate, With pre-mounted Euro screws - 329.71.510 by Hafele — A product that ensures practical installation and high durability.

Properties

Product Code: 329.71.510
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_ENG
329.71.510_Safety notes
ISO_9001_TR
ISO_27001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

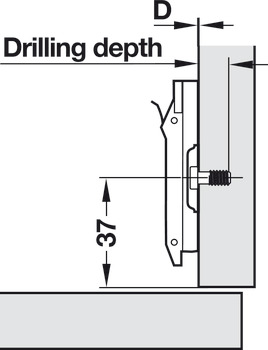

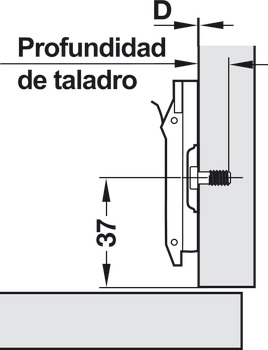

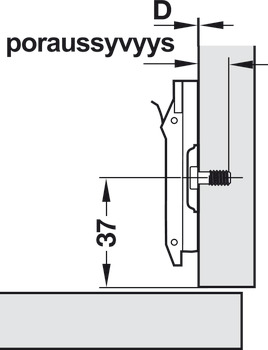

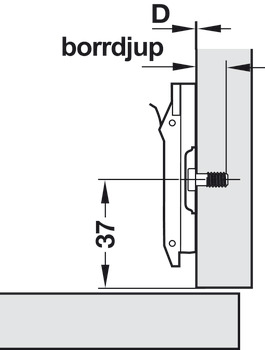

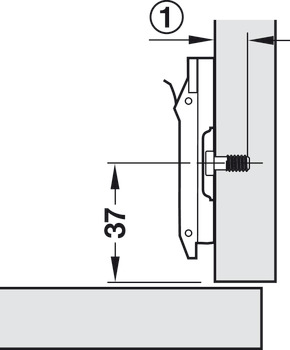

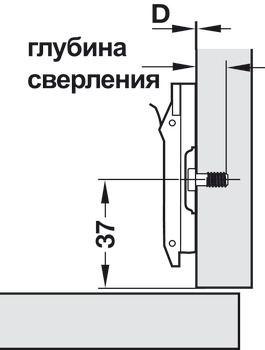

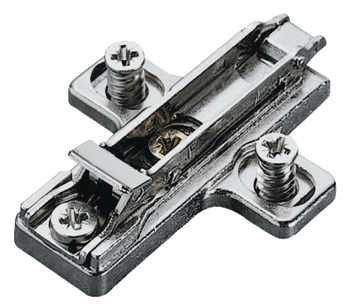

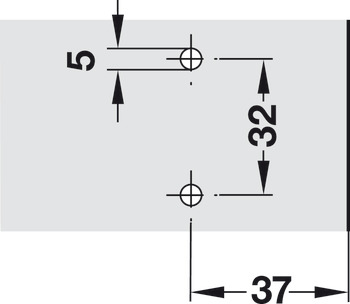

The Cruciform mounting plate, With pre-mounted Euro screws - 329.71.510 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from robust zinc alloy and features a nickel plating for an aesthetic appeal. It is designed for use with side panels that are 19 mm thick and has a drill hole diameter of 5 mm, making it versatile for various applications. With a screw distance of 32 mm and an edge distance of 37 mm, it simplifies the installation process.

The mounting plate offers height adjustment of ±2 mm and depth adjustment ranging from -0.5 mm to +2.8 mm. It is equipped with a quick fixing system SM, allowing for efficient installation with pre-mounted Euro screws. This makes the mounting process quick and straightforward. Suitable for the Metalla 510 SM model series, it is ideal for use with Häfele Metalla 510 concealed hinges.

This product stands out for its ease of installation and durability. It is a preferred choice due to its quality materials and functional design.
