Furniture Hinges

Cruciform mounting plate Metalla 510 SM - 329.87.070

HAFELE

Cruciform mounting plate Metalla 510 SM - 329.87.070 by Hafele — A practical and robust solution for hinge mounting.

Properties

Product Code: 329.87.070
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
329.87.070_Safety notes
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

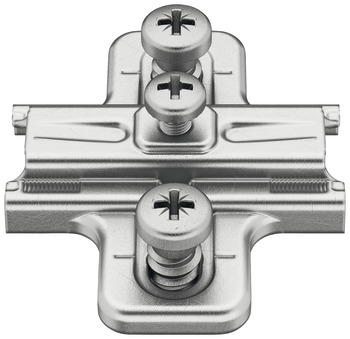

The Cruciform mounting plate Metalla 510 SM - 329.87.070 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for Häfele Metalla 510 SM 105° concealed hinges and is made from durable steel. Its nickel-plated surface provides long-lasting use and an aesthetic appearance.

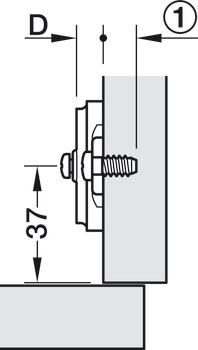

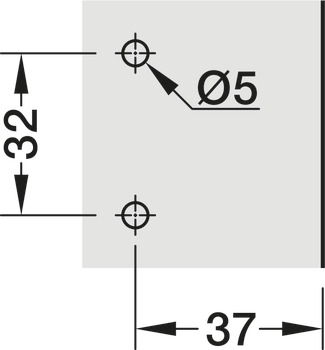

Equipped with a quick fixing system SM, it simplifies the installation process. With a drill hole diameter of 5 mm and a drilling depth of 7.50 mm, it ensures secure mounting. The screw distance of 32 mm and edge distance of 37 mm enhance the precision of the installation. Additionally, it offers ±2 mm height adjustment for flexibility during assembly.

The Cruciform mounting plate ensures quick and secure installation. It should be the preferred choice for any furniture project, combining Hafele's quality with practical functionality.
