Cruciform mounting plate Metalla 510 SM - 329.87.041

HAFELE

Cruciform mounting plate Metalla 510 SM - 329.87.041 by Hafele — A robust and practical mounting solution for door hinges.

Properties

Product Code: 329.87.041
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_27001_ENG
329.87.041_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

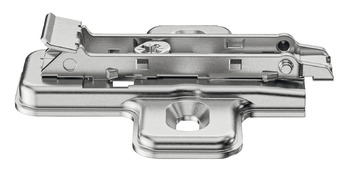

The Cruciform mounting plate Metalla 510 SM - 329.87.041 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed for use at 155° angles, compatible with aluminum profiles, glass door hinges, and face frame hinges. Made from durable steel and finished with nickel plating, it offers both an aesthetic appeal and long-lasting performance.

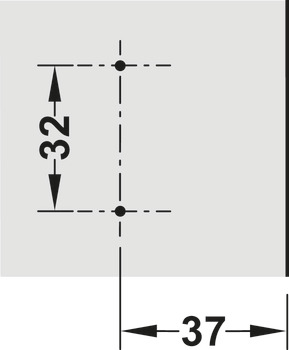

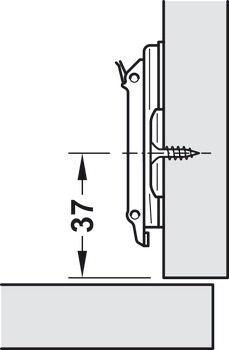

The mounting plate features a screw distance of 32 mm and an edge distance of 37 mm, providing a practical installation option. Height adjustment is facilitated via a slot, while depth adjustment is achieved through an eccentric mechanism. The mounting plate is designed for screw fixing with chipboard screws, ensuring a secure connection.

The Cruciform mounting plate Metalla 510 SM stands out with its ease of installation and reliability. Manufactured by Hafele, this product is designed to meet various mounting needs effectively.
