Furniture Hinges

Cruciform mounting plate Metalla 510 SM - 329.87.031

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate Metalla 510 SM - 329.87.031 by Hafele — A reliable mounting solution for concealed hinges.

Properties

Product Code: 329.87.031
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
329.87.031_Safety notes
ISO_9001_TR
ISO_27001_ENG
ISO_9001_ENG
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

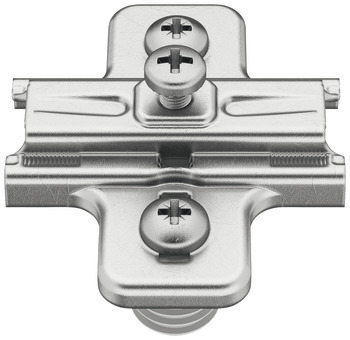

The Cruciform mounting plate Metalla 510 SM - 329.87.031 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for use with Häfele Metalla 510 SM 105° concealed hinges, allowing for seamless integration into your furniture projects. The nickel-plated finish not only enhances its aesthetic appeal but also ensures durability, making it a long-lasting solution for your mounting needs.

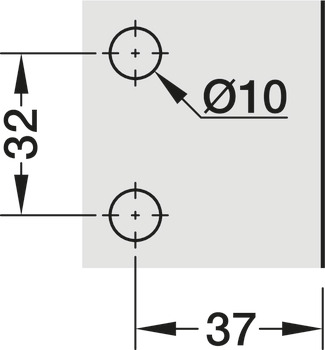

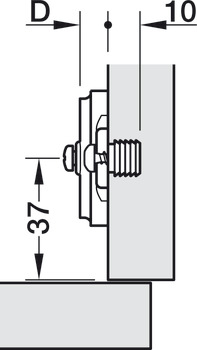

With a drill hole diameter of 10 mm and a drilling depth of 10 mm, this mounting plate is easy to install. The screw distance of 32 mm and edge distance of 37 mm provide flexibility during installation. Height adjustments can be made easily via a slot, allowing for ±2 mm of adjustment. The quick fixing system SM makes the installation process efficient and straightforward, while the pre-mounted dowels facilitate easy press fitting.

The Cruciform mounting plate stands out due to its unique strengths and practical features, making it an excellent choice for those seeking reliable mounting solutions.
