Furniture Hinges

Cruciform mounting plate Metalla 510 SM - 329.74.536

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate Metalla 510 SM - 329.74.536 by Hafele — A reliable mounting solution for furniture hinges.

Properties

Product Code: 329.74.536
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

329.74.536_Safety notes
ISO_9001_ENG
ISO_27001_ENG
ISO_27001_TR
ISO_9001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

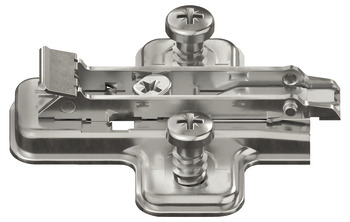

The Cruciform mounting plate Metalla 510 SM - 329.74.536 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for Häfele Metalla 510 concealed hinges and is made from durable steel. Its nickel-plated surface enhances durability while providing an aesthetic appeal.

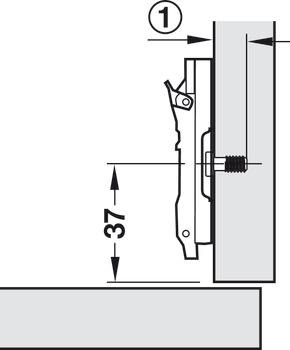

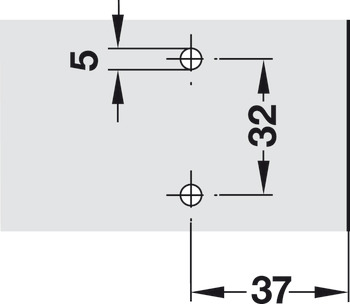

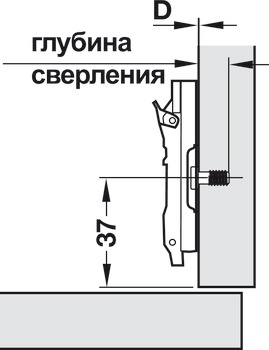

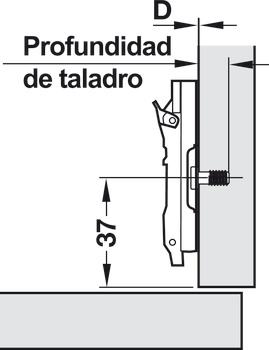

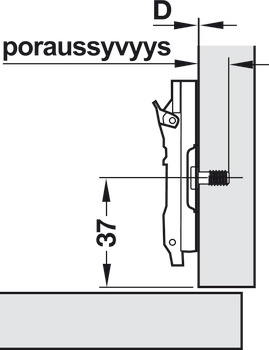

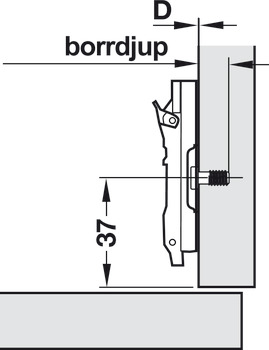

Offering a practical solution for mounting, this product features a drill hole diameter of 5 mm and is compatible with a center panel thickness of 16 mm. Additionally, it has a screw distance of 32 mm and an edge distance of 37 mm, making installation straightforward. Height adjustment can be made via a slot of ±2 mm, while depth adjustment is facilitated by an eccentric system. Equipped with a quick fixing system SM, this mounting plate allows for screw fixing with pre-mounted Euro screws.

The Cruciform mounting plate Metalla 510 SM - 329.74.536 stands out for its ease of installation and reliability, making it a preferred choice for mounting needs.
