Cruciform mounting plate Metalla 510 SM - 329.74.514

HAFELE

Cruciform mounting plate Metalla 510 SM - 329.74.514 by Hafele — An ideal mounting solution for Metalla 510 concealed hinges.

Properties

Product Code: 329.74.514
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_TR
ISO_27001_ENG
ISO_9001_ENG
Güvenlik Notları--Security Notes
329.74.514_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

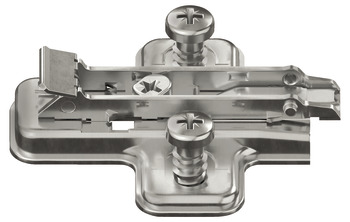

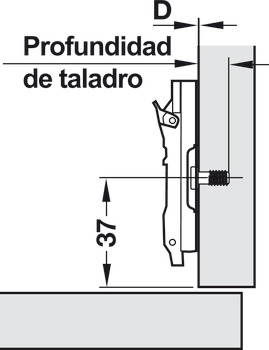

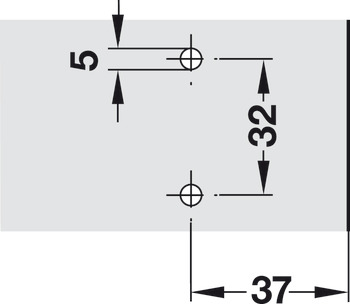

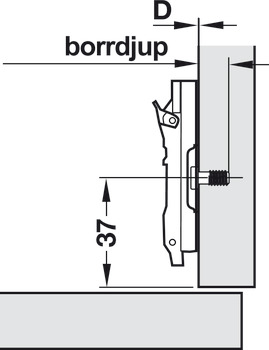

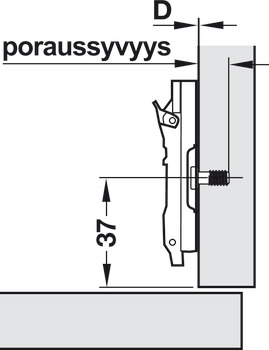

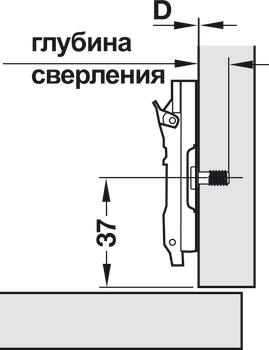

The Cruciform mounting plate Metalla 510 SM - 329.74.514 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from durable steel and features a nickel-plated finish, ensuring both aesthetic appeal and longevity. With a drill hole diameter of 5 mm and a screw distance of 32 mm, it simplifies the installation process while providing a secure fit. The edge distance of 37 mm further enhances its reliability during use.

Designed for ease of adjustment, the plate allows for height adjustments via a ±2 mm slot and depth adjustments through an eccentric mechanism. The quick fixing system SM enables fast and efficient installation, making it user-friendly. Additionally, it comes with pre-mounted Euro screws for straightforward screw fixing, adding to its convenience.

The Cruciform mounting plate stands out for its ease of use and reliability, making it an excellent choice for those seeking efficient mounting solutions.
