Cruciform mounting plate Metalla 510 SM - 329.74.512

HAFELE

Cruciform mounting plate Metalla 510 SM - 329.74.512 by Hafele — an excellent mounting solution for Metalla 510 concealed hinges.

Properties

Product Code: 329.74.512
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
329.74.512_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

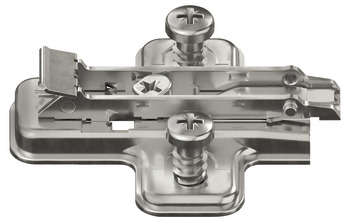

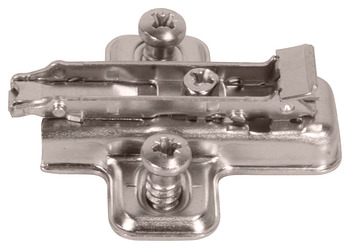

The Cruciform mounting plate Metalla 510 SM - 329.74.512 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for Häfele Metalla 510 concealed hinges, made from durable steel and finished with nickel plating for both aesthetic appeal and longevity.

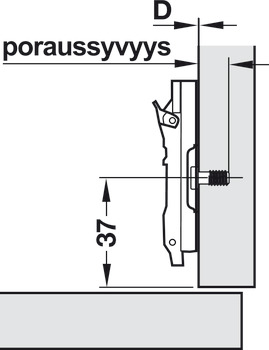

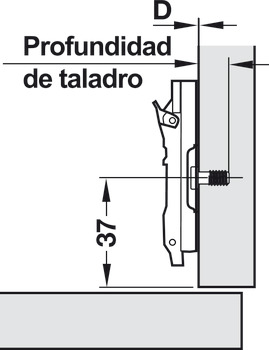

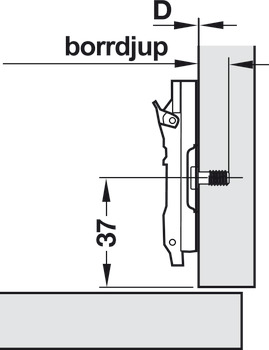

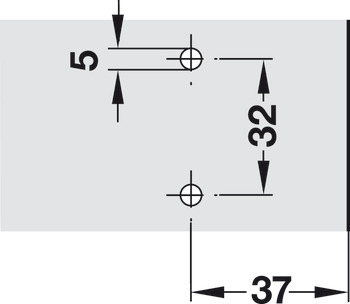

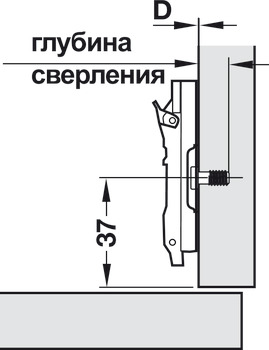

With a drill hole diameter of 5 mm, a screw distance of 32 mm, and an edge distance of 37 mm, installation is straightforward and efficient. The height adjustment feature allows for a ±2 mm range via a slot, while depth adjustment is facilitated through an eccentric mechanism. The quick fixing system SM enables rapid installation, and the pre-mounted Euro screws simplify the fixing process.

The Cruciform mounting plate stands out for its ease of installation and robust construction, making it a reliable choice for your mounting needs.
