Cruciform mounting plate Metalla 510 SM - 329.74.510

HAFELE

Cruciform mounting plate Metalla 510 SM - 329.74.510 by Hafele — An ideal mounting solution for Häfele Metalla 510 concealed hinges.

Properties

Product Code: 329.74.510
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_ENG
329.74.510_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

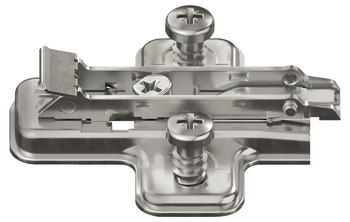

The Cruciform mounting plate Metalla 510 SM - 329.74.510 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed to be compatible with Häfele Metalla 510 concealed hinges, made from durable steel material, ensuring long-lasting performance. The nickel-plated finish not only enhances its aesthetic appeal but also adds to its durability and resistance to wear.

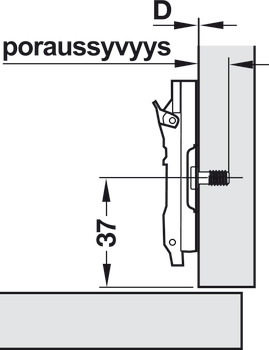

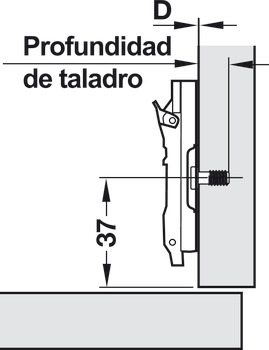

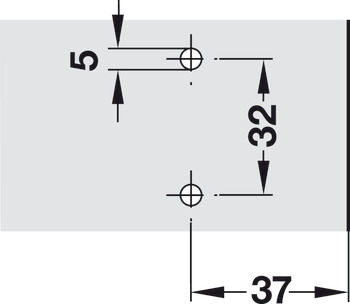

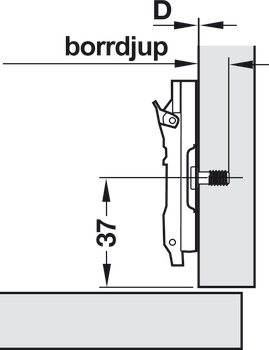

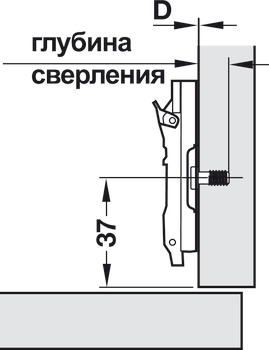

With a drill hole diameter of 5 mm and a screw distance of 32 mm, this product is user-friendly and easy to install. The edge distance of 37 mm provides flexibility during installation. Height adjustment can be made via a slot with ±2 mm, and depth adjustment is facilitated through an eccentric mechanism. The quick fixing system SM allows for faster installation, reducing labor costs.

The Cruciform mounting plate stands out with its features that simplify installation processes, making it a reliable solution for users. It embodies the quality of Hafele, ensuring a dependable mounting solution.
