Furniture Hinges

Cruciform mounting plate Metalla 510 SM - 329.73.618

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Cruciform mounting plate Metalla 510 SM - 329.73.618 by Hafele — A reliable solution for mounting concealed hinges.

Properties

Product Code: 329.73.618
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_ENG
329.73.618_Safety notes
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

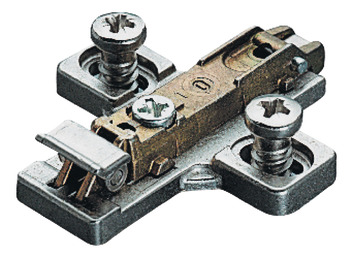

The Cruciform mounting plate Metalla 510 SM - 329.73.618 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specially designed for Häfele Metalla 510 concealed hinges, facilitating the installation process and significantly easing the workload for users. Made from zinc alloy and featuring a nickel-plated finish, it ensures durability and provides an aesthetically pleasing appearance.

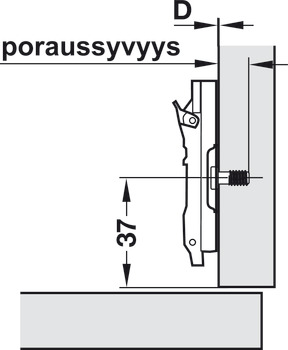

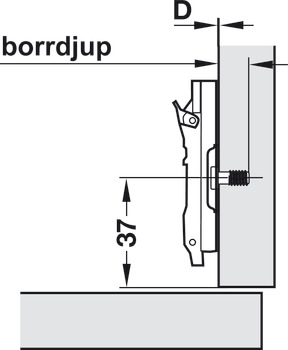

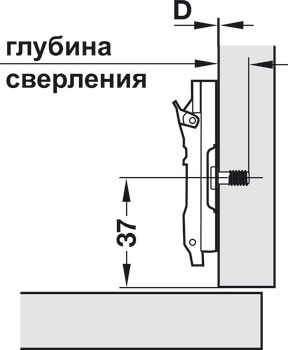

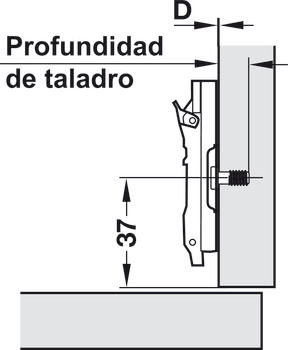

The mounting plate is suitable for drill holes of 5 mm and side panel thicknesses of 19 mm. With a screw distance of 32 mm and an edge distance of 37 mm, it simplifies the installation process. Additionally, it offers height adjustment via a slot of ±2 mm and depth adjustment via eccentric, providing flexibility during installation. The quick fixing system SM allows for practical use, and it comes with pre-mounted Euro screws for easy screw fixing.

The Cruciform mounting plate simplifies the installation process, making it a preferred choice for users. Its quality materials and craftsmanship are the primary reasons to choose this product.
