Cruciform mounting plate Metalla 510 SM - 329.71.526

HAFELE

Cruciform mounting plate Metalla 510 SM - 329.71.526 by Hafele — Offers perfect mounting and adjustment capabilities.

Properties

Product Code: 329.71.526
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_ENG
ISO_9001_TR
329.71.526_Safety notes
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

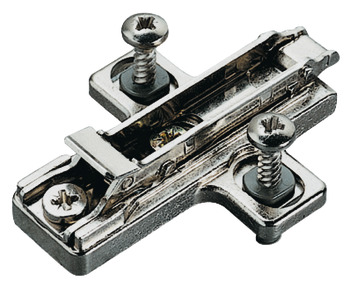

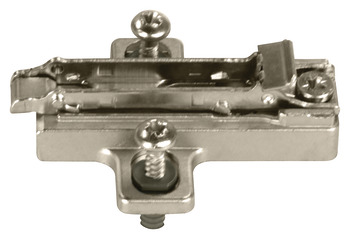

The Cruciform mounting plate Metalla 510 SM - 329.71.526 by Hafele represents a refined fusion of quality and functionality. This mounting plate stands out with its unique design and high-quality zinc alloy material. The nickel-plated surface not only enhances aesthetic appeal but also increases durability.

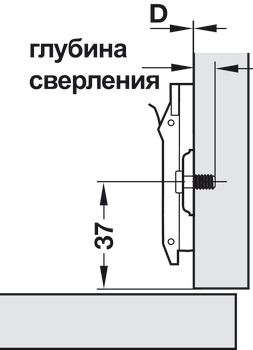

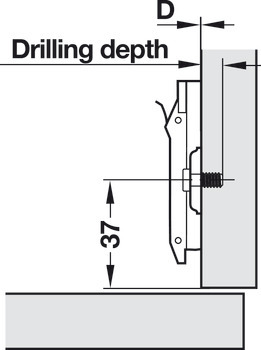

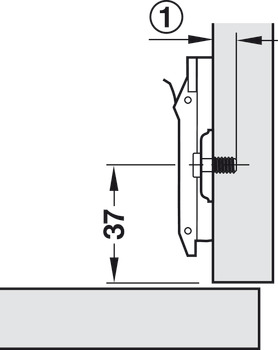

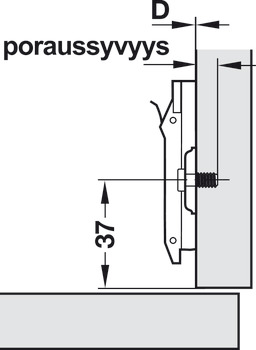

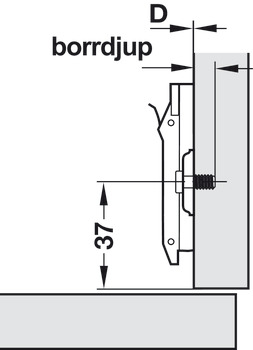

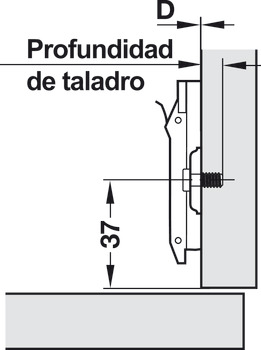

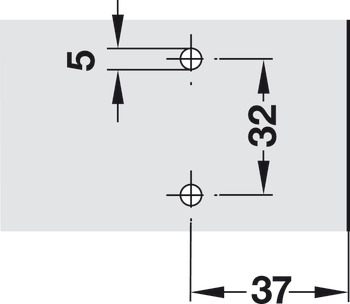

Designed to accommodate a drill hole diameter of 5 mm and a side panel thickness of 19 mm, it offers a drilling depth of 11 mm for easy installation. The screw distance of 32 mm and edge distance of 37 mm further facilitate practical mounting operations. With height adjustment of ±2 mm and depth adjustment of -0.5/+2.8 mm via an eccentric system, users can enjoy flexibility during installation.

The Cruciform mounting plate enhances the ease and reliability of mounting operations. Its user-friendly design accelerates the installation process, boosting operational efficiency.
