Cruciform mounting plate Metalla 510 SM - 329.71.520
Furniture Hinges

Cruciform mounting plate Metalla 510 SM - 329.71.520

HAFELE

Drawing Files Technical Documents

Cruciform mounting plate Metalla 510 SM - 329.71.520 by Hafele — A reliable support for mounting concealed hinges.

Properties

Product Code: 329.71.520
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_ENG
  • 329.71.520_Safety notes
  • ISO_27001_ENG
  • ISO_27001_TR
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

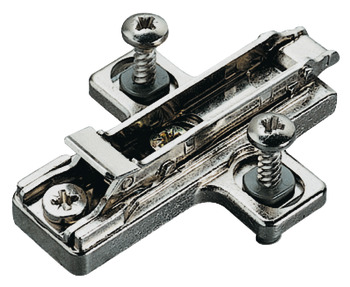

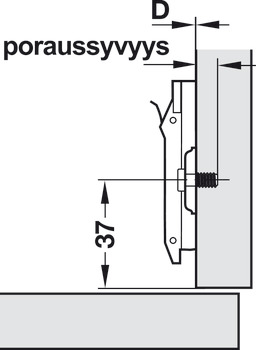

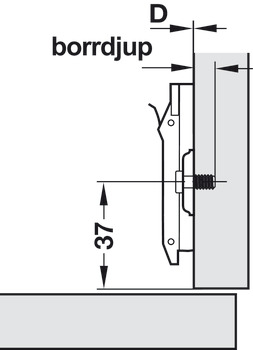

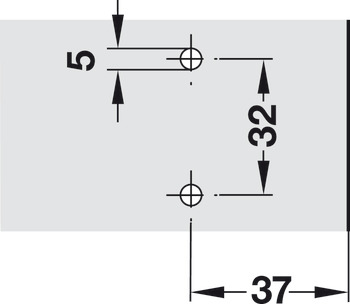

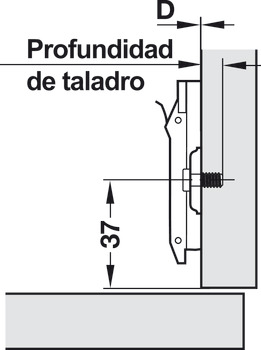

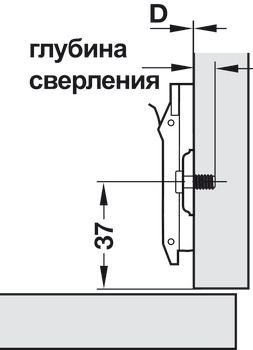

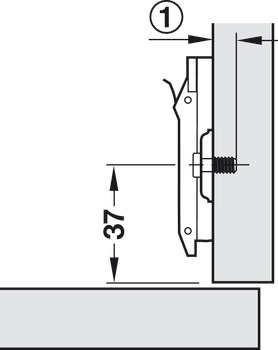

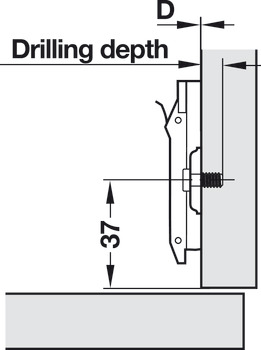

The Cruciform mounting plate Metalla 510 SM - 329.71.520 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed to be compatible with Metalla 510 concealed hinges. Made from zinc alloy and nickel plated, it enhances durability. With a drill hole diameter of 5 mm, it is ideal for side panels with a thickness of 19 mm. The drilling depth of 11 mm, screw distance of 32 mm, and edge distance of 37 mm provide a wide range of applications.

The product offers height adjustment of ±2 mm and depth adjustment of -0.5/+2.8 mm. Equipped with a quick fixing system SM, this mounting plate comes with pre-mounted special screws and spreading dowels. It ensures secure mounting of concealed hinges.



The Cruciform mounting plate Metalla 510 SM - 329.71.520 stands out with its ease of installation and reliability. It offers a solid and aesthetic solution for your furniture needs.
