Cruciform mounting plate Metalla 510 SM - 329.71.502

HAFELE

Download Product ID Card

Drawing Files Technical Documents

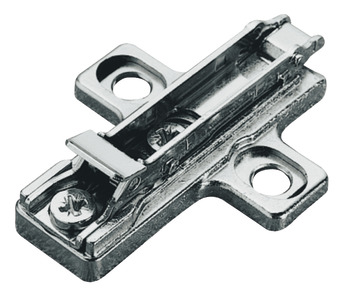

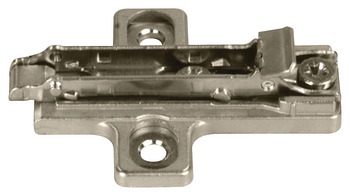

Cruciform mounting plate Metalla 510 SM - 329.71.502 by Hafele — designed for quick and easy hinge installation.

Properties

Product Code: 329.71.502
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

329.71.502_Safety notes
ISO_9001_TR
ISO_27001_ENG
ISO_9001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Cruciform mounting plate Metalla 510 SM - 329.71.502 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed to be compatible with Häfele Metalla 510 concealed hinges, providing a seamless installation experience. With its quick fixing system and eccentric adjustment features, it enhances efficiency during the mounting process. Made from zinc alloy and finished with nickel plating, it ensures durability and resistance to wear.

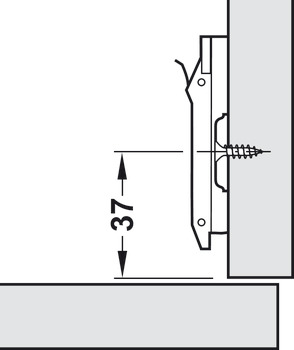

The mounting plate allows for easy height adjustment of ±2 mm and depth adjustment ranging from -0.5 mm to +2.8 mm, making it versatile for various applications. The 2 mm drill hole diameter and 32 mm screw distance make it suitable for standard mounting operations, while the 37 mm edge distance provides additional flexibility during installation.

The Cruciform mounting plate Metalla 510 SM stands out for its ease of use and flexibility during installation. Combined with Hafele's quality, this product makes the mounting process more efficient and reliable.
