Furniture Hinges

Cruciform Mounting Plate Metalla 510 SM - 329.69.055

HAFELE

Cruciform Mounting Plate Metalla 510 SM - 329.69.055 by Hafele — A durable and practical mounting solution that simplifies the installation of furniture hinges.

Properties

Product Code: 329.69.055
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR
329.69.055_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

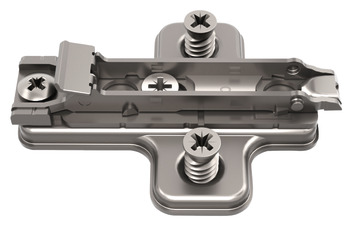

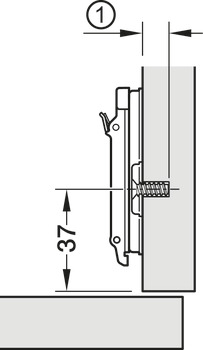

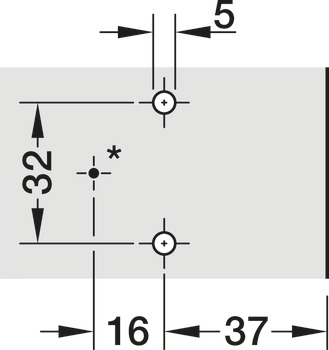

The Cruciform Mounting Plate Metalla 510 SM - 329.69.055 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from robust steel and features a nickel plating for enhanced durability. Designed for drill holes of 5 mm, it accommodates side panel thicknesses of 19 mm, with a screw distance of 32 mm and an edge distance of 37 mm.

It offers height and depth adjustments via an eccentric system, facilitating flexible installation. The quick fixing system SM allows for efficient mounting, and it comes with pre-mounted Euro screws for easy screw fixing. These features streamline the installation process, making it faster and more efficient.

The Cruciform Mounting Plate Metalla 510 SM - 329.69.055 stands out with its reliable features and user-friendly design, ensuring a seamless installation experience.
