Furniture Hinges

Cruciform Mounting Plate Metalla 510 SM - 329.69.047

HAFELE

Download Product ID Card

Download Product Files

Cruciform Mounting Plate Metalla 510 SM - 329.69.047 by Hafele — Provides reliable support for assembly tasks.

Properties

Product Code: 329.69.047
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

329.69.047_Safety notes
ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

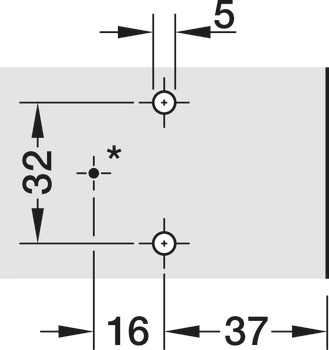

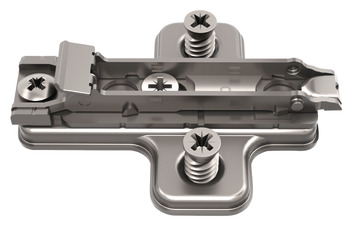

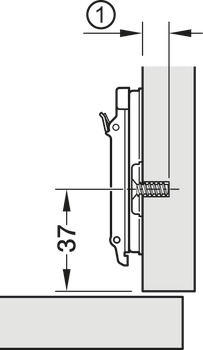

The Cruciform Mounting Plate Metalla 510 SM - 329.69.047 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from durable steel and features a nickel plating that ensures longevity. With a drill hole diameter of 5 mm, it offers easy installation, while the screw distance of 32 mm and edge distance of 37 mm provide practical solutions for various applications.

The product is equipped with an eccentric mechanism for height and depth adjustment, making it versatile for different mounting needs. The quick fixing system SM allows for rapid assembly, and the pre-mounted Euro screws facilitate secure fastening, ensuring compatibility with Häfele Metalla 510 concealed hinges.

This mounting plate is ideal for both professional and DIY users, providing reliable support in furniture assembly. It is an excellent choice for those seeking a trustworthy solution backed by Hafele's quality.
