Furniture Hinges

Cruciform Mounting Plate Metalla 510 SM - 329.69.045

HAFELE

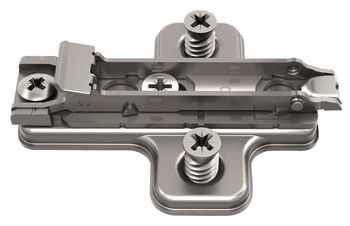

Cruciform Mounting Plate Metalla 510 SM - 329.69.045 by Hafele — This plate ensures durability and ease of assembly.

Properties

Product Code: 329.69.045
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_TR
329.69.045_Safety notes
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

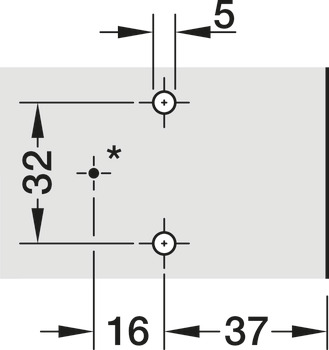

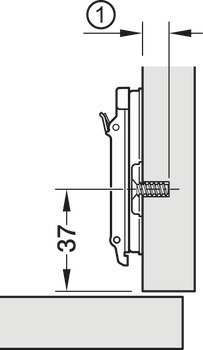

The Cruciform Mounting Plate Metalla 510 SM - 329.69.045 by Hafele represents a refined fusion of quality and functionality. Made from durable steel and finished with a nickel plating, this mounting plate is designed for easy installation with a drill hole diameter of 5 mm. It features a screw distance of 32 mm and an edge distance of 37 mm, making it versatile for various mounting needs.

This mounting plate offers height and depth adjustment through an eccentric mechanism, allowing for flexible installation. The quick fixing system ensures a fast and efficient setup process. It comes with pre-mounted Euro screws, simplifying the assembly even further. Designed to be compatible with Häfele Metalla 510 concealed hinges, it guarantees a seamless integration into your furniture.

The Cruciform Mounting Plate stands out for its practicality and durability in assembly tasks. Its high-quality materials and craftsmanship make it a preferred choice for furniture assembly.
