Furniture Hinges

Cruciform Mounting Plate Metalla 510 SM - 329.69.044

HAFELE

Cruciform Mounting Plate Metalla 510 SM - 329.69.044 by Hafele — Provides high performance and reliability in mounting processes.

Properties

Product Code: 329.69.044
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_TR
ISO_27001_ENG
329.69.044_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

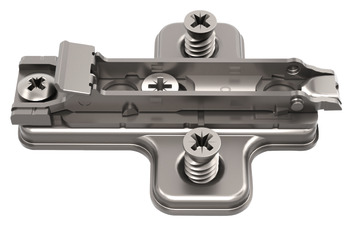

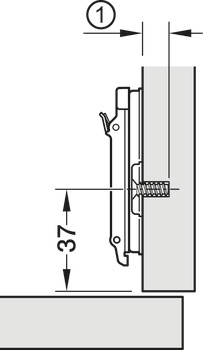

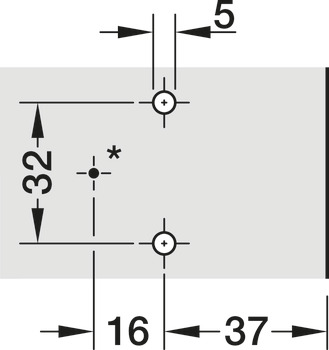

The Cruciform Mounting Plate Metalla 510 SM - 329.69.044 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made of durable steel and features a nickel plating for an aesthetic appeal. With a drill hole diameter of 5 mm, it facilitates easy mounting while being compatible with side panel thicknesses of 19 mm. The screw distance of 32 mm and edge distance of 37 mm ensure a perfect fit.

The mounting plate offers height and depth adjustments via eccentric systems, making it user-friendly. The quick fixing system SM simplifies the mounting process. With pre-mounted Euro screws, the screw fixing version significantly reduces installation time. It is designed to be compatible with Häfele Metalla 510 concealed hinges, making it an ideal choice.

The Cruciform Mounting Plate enhances efficiency in your mounting processes while providing durability and aesthetics. It offers a reliable solution with Hafele's quality.
