Cruciform Mounting Plate Metalla 510 SM - 329.69.042

HAFELE

Cruciform Mounting Plate Metalla 510 SM - 329.69.042 by Hafele — A reliable solution for furniture assembly with concealed hinges.

Properties

Product Code: 329.69.042
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
329.69.042_Safety notes
ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

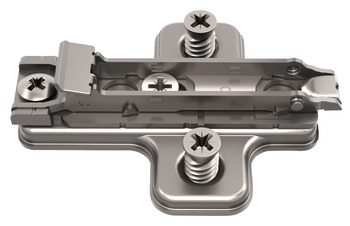

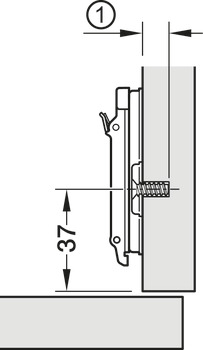

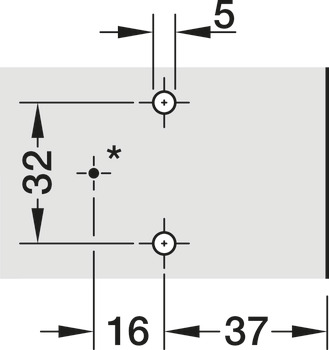

The Cruciform Mounting Plate Metalla 510 SM - 329.69.042 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from steel and features a nickel plating that enhances its durability. Designed for a drill hole diameter of 5 mm, it is compatible with side panels that are 19 mm thick. With a screw distance of 32 mm and an edge distance of 37 mm, it ensures easy and efficient installation.

The height and depth adjustments can be made easily via the eccentric system, allowing for precise alignment during assembly. The quick fixing system simplifies the installation process, enabling users to save time. Additionally, it comes with pre-mounted Euro screws that facilitate screw fixing, making it a convenient choice for various applications.

The Cruciform Mounting Plate stands out for its robust construction and practical features, making it an essential choice for reliable furniture assembly.
