Furniture Hinges

Cruciform Mounting Plate Metalla 510 SM - 329.69.040

HAFELE

Cruciform Mounting Plate Metalla 510 SM - 329.69.040 by Hafele — A durable solution that simplifies mounting processes.

Properties

Product Code: 329.69.040
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_ENG
329.69.040_Safety notes
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

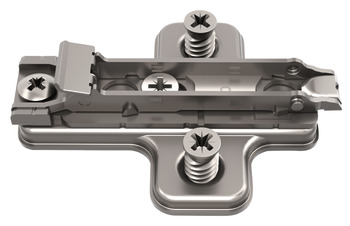

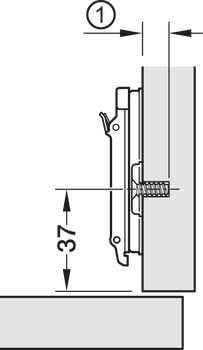

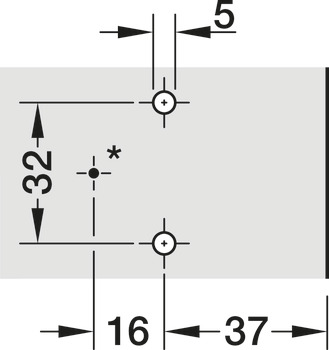

The Cruciform Mounting Plate Metalla 510 SM - 329.69.040 by Hafele represents a refined fusion of quality and functionality. Made from steel and finished with nickel plating, this mounting plate is designed for drill holes of 5 mm and features a screw distance of 32 mm along with an edge distance of 37 mm. The height and depth adjustments can be easily made via an eccentric mechanism, making it user-friendly.

This product is equipped with a quick fixing system SM, allowing for easy installation with pre-mounted Euro screws. Its compatibility with Häfele Metalla 510 concealed hinges makes it a versatile choice for various applications.

The Cruciform Mounting Plate Metalla 510 SM stands out with its robust construction and practical mounting features, making it an essential tool for simplifying assembly processes.
