Furniture Hinges

Cruciform mounting plate Metalla 510 SM - 329.69.020

HAFELE

Cruciform mounting plate Metalla 510 SM - 329.69.020 by Hafele — an excellent mounting solution for Häfele Metalla 510 concealed hinges.

Properties

Product Code: 329.69.020
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_TR
ISO_27001_ENG
ISO_9001_ENG
329.69.020_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

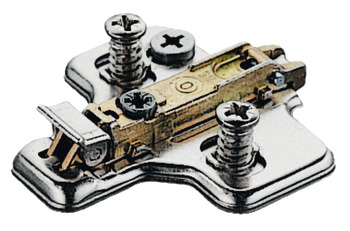

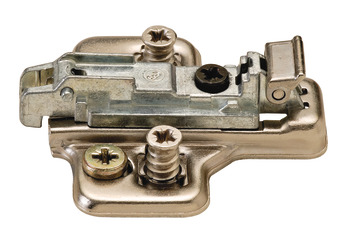

The Cruciform mounting plate Metalla 510 SM - 329.69.020 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed to work seamlessly with Häfele Metalla 510 concealed hinges. Made from durable steel and featuring a nickel-plated finish, it ensures longevity and an appealing aesthetic.

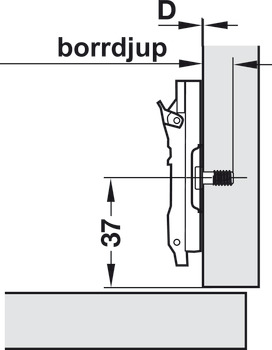

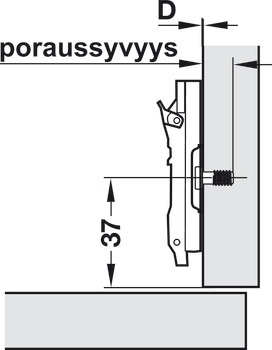

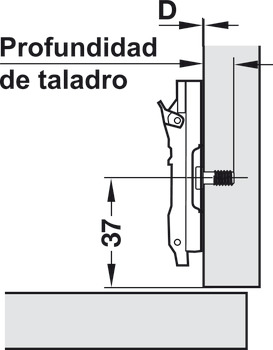

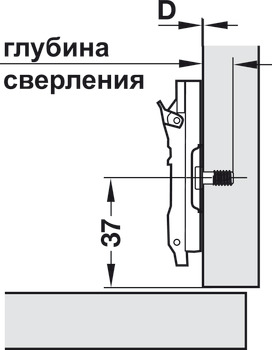

The mounting plate features a drill hole diameter of 5 mm and a screw distance of 32 mm, making installation straightforward and efficient. The edge distance of 37 mm allows for even load distribution, while height and depth adjustments can be easily made via the eccentric system. It comes with a quick fixing system SM, significantly reducing installation time.

This product stands out for its ease of installation and durability, making it an ideal choice for both professional and DIY users. The Cruciform mounting plate ensures a reliable mounting experience, backed by Hafele's quality.
