Cruciform mounting plate Metalla 510 A - 329.84.003 by Hafele — a perfect solution for mounting Häfele Metalla 510 concealed hinges.

Properties

Product Code: 329.84.003
Category: Furniture Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

329.84.003_Safety notes
ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

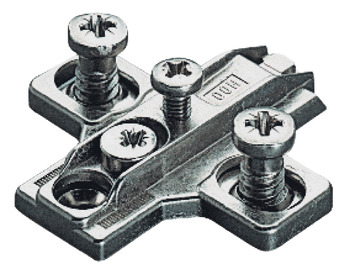

The Cruciform mounting plate Metalla 510 A - 329.84.003 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for use with Häfele Metalla 510 concealed hinges, making installation straightforward and efficient. Made from zinc alloy and finished with nickel plating, it offers enhanced durability and longevity, ensuring a reliable performance over time.

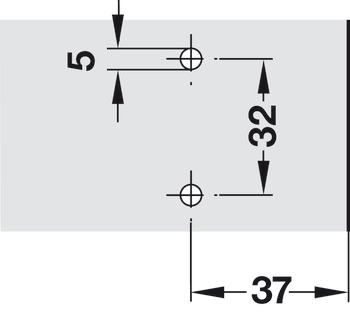

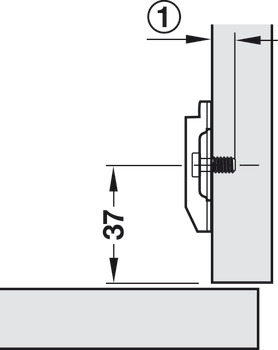

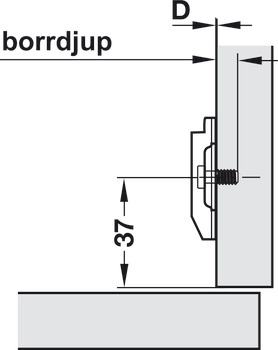

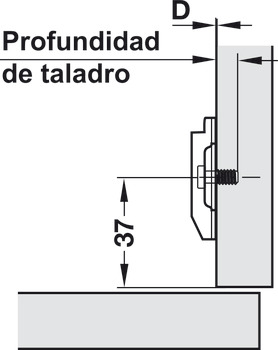

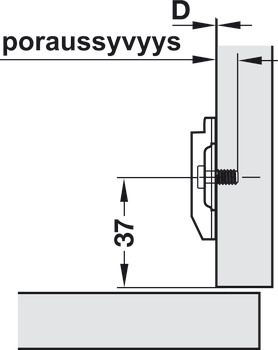

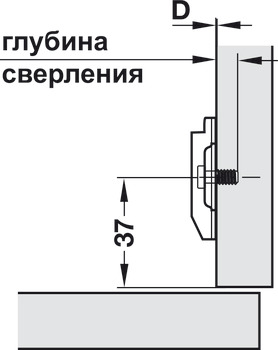

With a drill hole diameter of 5 mm, it accommodates a variety of panel thicknesses, specifically designed for side panels with a thickness of 19 mm. The drilling depth of 11 mm allows for secure installation, while the screw distance of 32 mm and edge distance of 37 mm provide flexibility in mounting options. The height adjustment feature allows for ±2 mm adjustment via a slot, and depth adjustment is facilitated through an eccentric mechanism. The fixing method utilizes a slide-on system A, with pre-mounted Euro screws for ease of installation.

This product provides a reliable solution for your mounting needs, ensuring a high-quality installation that stands the test of time. The Cruciform mounting plate is an excellent choice for achieving optimal results.
