Furniture Hinges

Cruciform mounting plate Metalla 510 A - 329.81.806

HAFELE

Cruciform mounting plate Metalla 510 A - 329.81.806 by Hafele — A practical and robust mounting solution for furniture hinges.

Properties

Product Code: 329.81.806
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
329.81.806_Safety notes
ISO_27001_TR
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

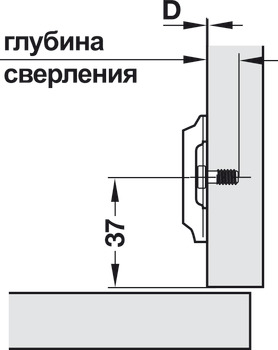

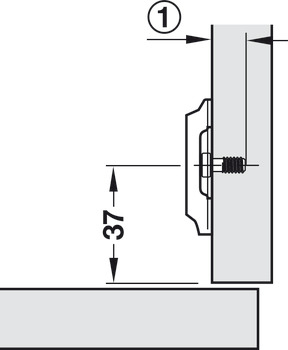

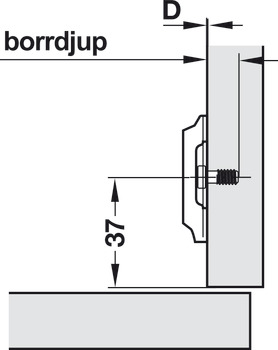

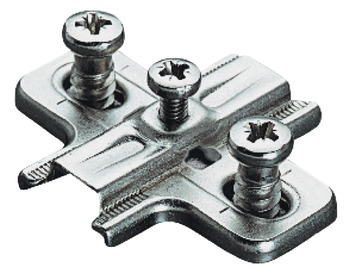

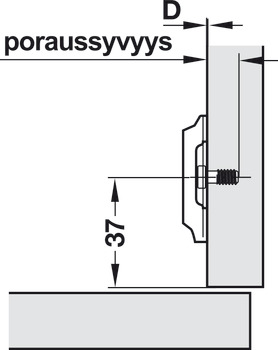

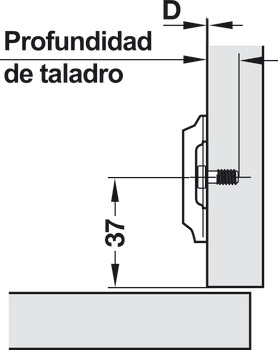

The Cruciform mounting plate Metalla 510 A - 329.81.806 by Hafele represents a refined fusion of quality and functionality. Made from high-quality steel, it features a nickel plating that enhances durability. With a drill hole diameter of 5 mm, it easily accommodates a center panel thickness of 19 mm. This mounting plate offers a screw distance of 32 mm and an edge distance of 37 mm.

Designed with a height adjustment slot of ±2 mm, it ensures precise fitting and is equipped with a quick fixing system SM for easy installation. The mounting plate version allows for screw fixing with pre-mounted Euro screws, making the installation process quick and efficient. Specifically designed for the Metalla 510 model series, it is compatible with Häfele Metalla 510 concealed hinges.

The Cruciform mounting plate Metalla 510 A stands out with its robust construction and practical installation features, making it an essential component for efficient furniture assembly.
