Furniture Hinges

Cruciform mounting plate Metalla 510 A - 329.81.803

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Cruciform mounting plate Metalla 510 A - 329.81.803 by Hafele — A reliable solution for your mounting needs.

Properties

Product Code: 329.81.803
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_27001_TR
329.81.803_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

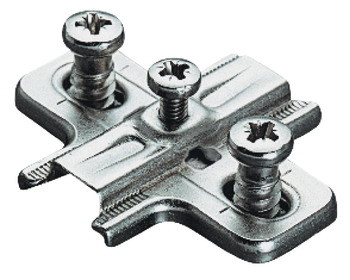

The Cruciform mounting plate Metalla 510 A - 329.81.803 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from steel and features a nickel-plated finish for enhanced durability. It is specifically designed to work seamlessly with Häfele Metalla 510 concealed hinges, making it an excellent choice for various mounting applications.

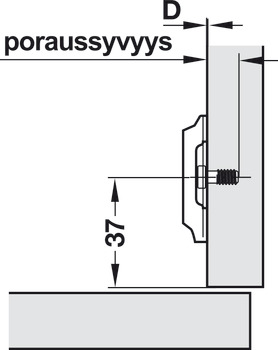

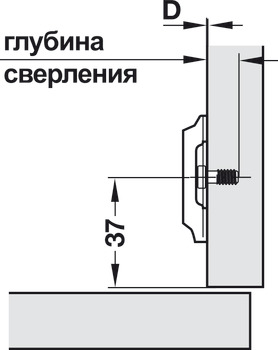

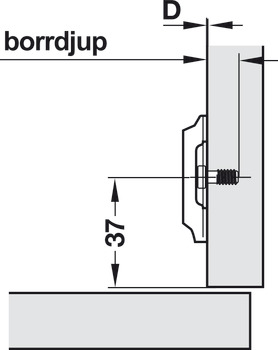

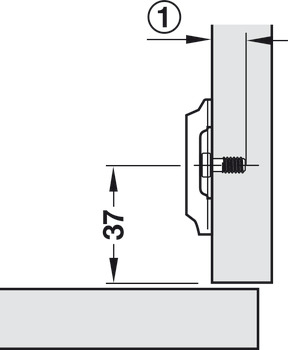

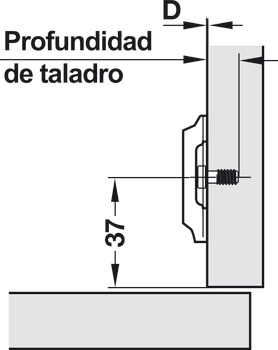

The product boasts a drill hole diameter of 5 mm and is suitable for center panel thicknesses of 19 mm, allowing for easy installation. With a screw distance of 32 mm and an edge distance of 37 mm, it provides flexibility for different setups. Additionally, the height adjustment feature allows for ±2 mm of adjustment, ensuring precise fitting. The quick fixing system SM enhances user convenience during installation.

The Cruciform mounting plate Metalla 510 A - 329.81.803 stands out for its reliability and ease of use, making it a preferred choice for professionals in the field.
