Furniture Hinges

Cruciform mounting plate Metalla 510 A - 329.81.590

HAFELE

Cruciform mounting plate Metalla 510 A - 329.81.590 by Hafele — This mounting plate is ideal for Häfele Metalla 510 concealed hinges.

Properties

Product Code: 329.81.590
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

329.81.590_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG
ISO_27001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

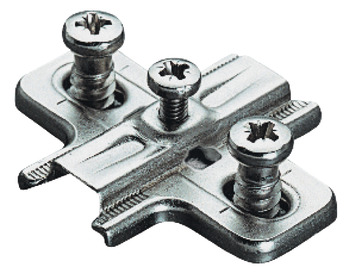

The Cruciform mounting plate Metalla 510 A - 329.81.590 by Hafele represents a refined fusion of quality and functionality. This mounting plate is made from high-quality steel and features a nickel plating that enhances its durability. Its design allows for easy installation, providing significant advantages to users.

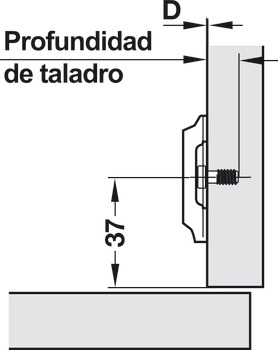

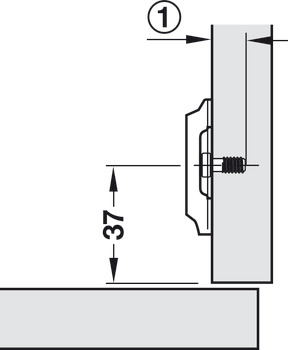

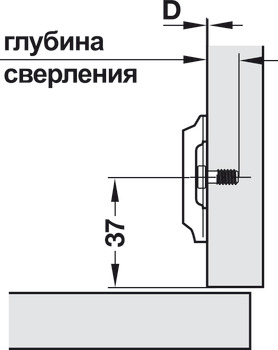

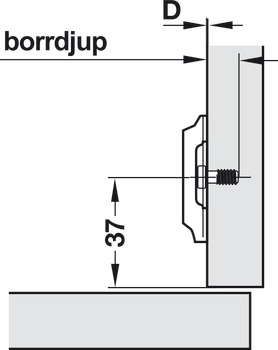

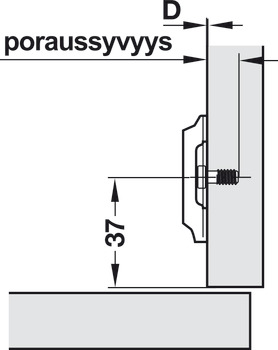

The product is designed to fit drill holes of 5 mm and accommodates side panels with a thickness of 19 mm. With a screw distance of 32 mm and an edge distance of 37 mm, it offers flexibility during installation. Additionally, the height adjustment via slot of ±2 mm provides extra comfort for users. Equipped with a quick fixing system SM, this product simplifies the fixing process with pre-mounted Euro screws.

The Cruciform mounting plate Metalla 510 A stands out for its practicality and durability in installation processes. Combined with Hafele's quality, this product is an indispensable aid in furniture assembly.
