Furniture Hinges

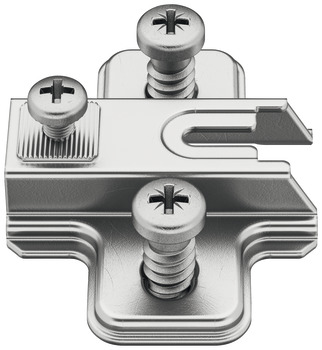

Cruciform mounting plate Metalla 310 A - 311.03.108

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate Metalla 310 A - 311.03.108 by Hafele — Ideal mounting solution for furniture hinges.

Properties

Product Code: 311.03.108
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_9001_ENG
ISO_27001_ENG
ISO_9001_TR
311.03.108_Safety notes
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Cruciform mounting plate Metalla 310 A - 311.03.108 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed to be compatible with Häfele Metalla 310 A concealed hinges. Made from high-quality steel and protected with nickel plating, it ensures durability and strength during the assembly process.

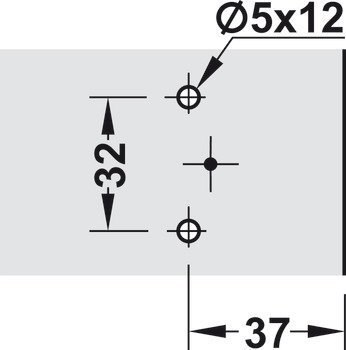

The mounting plate features a drill hole diameter of 5 mm and a drilling depth of 12 mm, facilitating an easy installation process. With a screw distance of 32 mm and an edge distance of 37 mm, it allows for precise mounting. The height adjustment via a ±2 mm slot provides flexibility during installation. The slide-on system A fixing method simplifies the mounting process, and it comes with pre-mounted Euro screws for easy attachment.

The Cruciform mounting plate Metalla 310 A - 311.03.108 offers a reliable solution that simplifies the assembly process. When combined with Hafele's quality, it becomes an indispensable mounting accessory for users.
