Furniture Hinges

Cruciform mounting plate for Tiomos twin mounting - 348.38.532

HAFELE

Cruciform mounting plate for Tiomos twin mounting - 348.38.532 by Hafele — a specialized solution for twin mounting applications.

Properties

Product Code: 348.38.532
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 1
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
348.38.532_Safety notes
ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

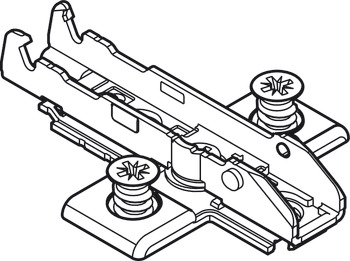

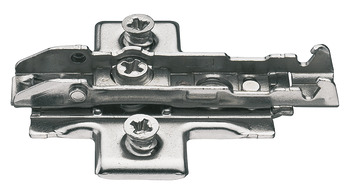

The Cruciform mounting plate for Tiomos twin mounting - 348.38.532 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed for use with Grass Tiomos concealed hinges, ensuring a secure and reliable installation. Made from durable steel, it features a nickel-plated finish that not only enhances its aesthetic appeal but also contributes to its longevity.

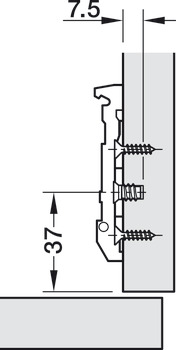

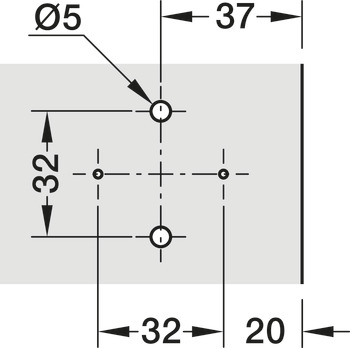

With a drill hole diameter of 5 mm and a drilling depth of 7.50 mm, it accommodates screws that are 10 mm long and spaced 32 mm apart. The edge distance of 37 mm ensures optimal placement, while the height adjustment feature allows for fine-tuning via a worm gear with a ±2 mm range. The fixing method utilizes a convenient clip system, and it comes with pre-mounted Euro screws for easy installation.

The Cruciform mounting plate for Tiomos twin mounting stands out for its ease of installation and robust performance. With Hafele's commitment to quality, this product is an ideal choice for all your mounting needs.
