Furniture Hinges

Cruciform mounting plate for Tiomos twin mounting - 348.38.531

HAFELE

Download Product ID Card

Download Product Files

Cruciform mounting plate for Tiomos twin mounting - 348.38.531 by Hafele — an ideal solution for Tiomos hinges.

Properties

Product Code: 348.38.531
Category: Furniture Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 1
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

348.38.531_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_27001_TR
ISO_9001_ENG
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

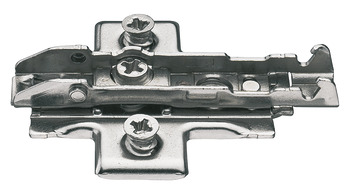

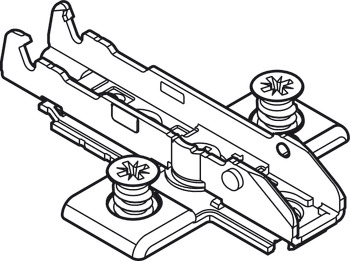

The Cruciform mounting plate for Tiomos twin mounting - 348.38.531 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed specifically for Grass Tiomos concealed hinges, making it suitable for twin mounting applications. Constructed from high-quality steel and finished with nickel plating, it ensures durability and reliability.

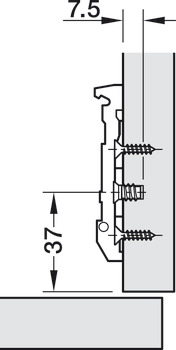

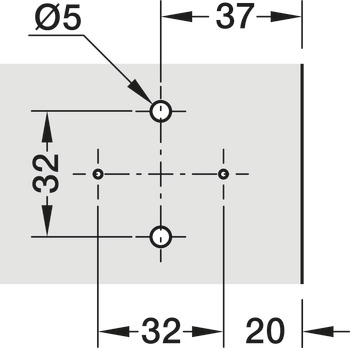

With a drill hole diameter of 5 mm and a drilling depth of 7.50 mm, it provides an easy installation process. The 10 mm screw length and 32 mm screw distance ensure a secure fit, while the 37 mm edge distance allows for flexible mounting options. The height adjustment feature, enabled by a worm gear, allows for ±2 mm of adjustment, making it versatile for various applications. The clip system used for fixing further simplifies the mounting process.

The Cruciform mounting plate for Tiomos twin mounting - 348.38.531 is a reliable solution that simplifies your mounting tasks. Experience the quality of Hafele for a dependable assembly process.
