Cruciform mounting plate for Tiomos - 348.39.509

HAFELE

Cruciform mounting plate for Tiomos - 348.39.509 by Hafele — a reliable and practical mounting solution for furniture hinges.

Properties

Product Code: 348.39.509
Category: Furniture Hinges

Material Properties

Used Material:
Steel/Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 1.3
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_TR
348.39.509_Safety notes
ISO_9001_ENG
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

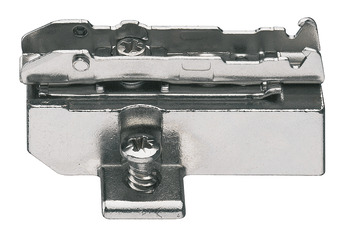

The Cruciform mounting plate for Tiomos - 348.39.509 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specially designed for Grass Tiomos concealed hinges and is made from high-quality steel and zinc alloy. With a nickel-plated finish, it enhances durability, ensuring long-lasting use.

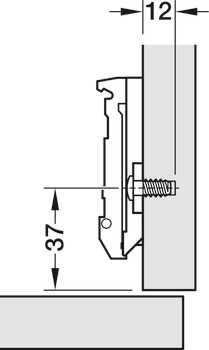

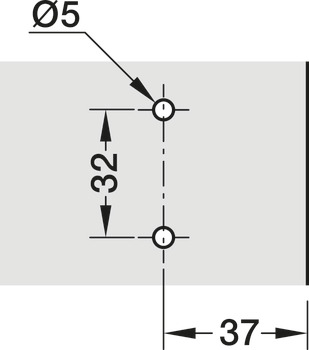

It features a drill hole diameter of 5 mm, providing ease of installation. The drilling depth of 12 mm and screw length of 13.50 mm ensure secure mounting. With a screw distance of 32 mm and edge distance of 37 mm, it offers compatibility with various setups. Additionally, the height adjustment via worm gear allows for flexibility during installation, with an adjustment range of ±2 mm.

This mounting plate serves as a reliable solution in furniture manufacturing and assembly. With its high-quality materials and practical design, it is user-friendly. This product from Hafele will greatly facilitate your mounting processes.
