Cruciform mounting plate for Tiomos - 348.39.508

HAFELE

Download Product ID Card

Drawing Files Technical Documents

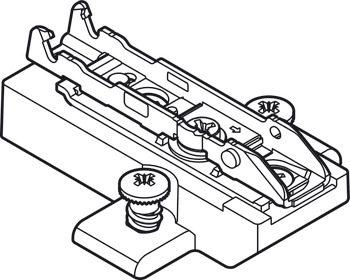

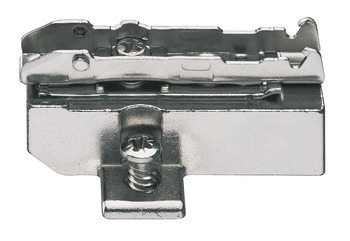

Cruciform mounting plate for Tiomos - 348.39.508 by Hafele — An ideal mounting solution for Grass Tiomos hinges.

Properties

Product Code: 348.39.508
Category: Furniture Hinges

Material Properties

Used Material:
Steel/Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 1.3
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_ENG
348.39.508_Safety notes
ISO_27001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Cruciform mounting plate for Tiomos - 348.39.508 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed to be compatible with Grass Tiomos concealed hinges and is made from durable steel and zinc alloy. Its nickel-plated surface not only provides an aesthetic appeal but also enhances the product's durability.

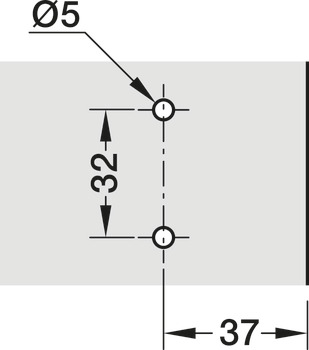

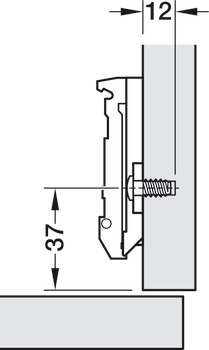

The mounting plate is suitable for drill holes of 5 mm in diameter and requires a drilling depth of 12 mm. The screws, measuring 13.50 mm in length, ensure a secure installation with a screw distance of 32 mm. Additionally, the edge distance of 37 mm guarantees a perfect fit. Height adjustment can be made easily via a worm gear system, allowing for flexibility during installation.

The Cruciform mounting plate for Tiomos - 348.39.508 stands out with its ease of use and durability. It is an ideal choice for both professional and hobbyist users. Enhance your furniture assembly with Hafele's quality products.
