Cruciform mounting plate for Tiomos - 348.39.503
Furniture Hinges

Cruciform mounting plate for Tiomos - 348.39.503

HAFELE

Drawing Files Technical Documents

Cruciform mounting plate for Tiomos - 348.39.503 by Hafele — A reliable solution for mounting applications.

Properties

Product Code: 348.39.503
Category: Furniture Hinges

Material Properties

Used Material:
Steel/Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 1.3
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_ENG
  • Güvenlik Notları--Security Notes
  • ISO_9001_TR
  • 348.39.503_Safety notes
  • ISO_27001_TR
  • ISO_27001_ENG
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

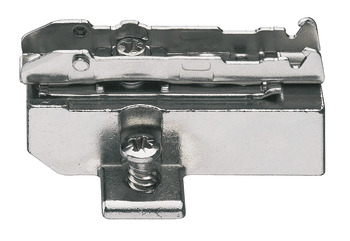

The Cruciform mounting plate for Tiomos - 348.39.503 by Hafele represents a refined fusion of quality and functionality. This mounting plate is designed to be compatible with Grass Tiomos concealed hinges. Made from steel and zinc alloy, it features a nickel-plated finish that enhances its durability. The high-quality materials ensure a long-lasting performance.

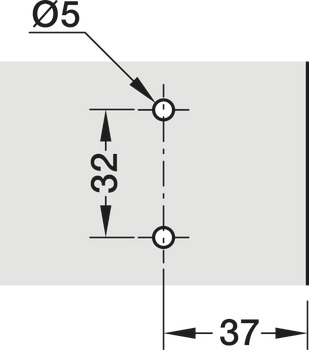

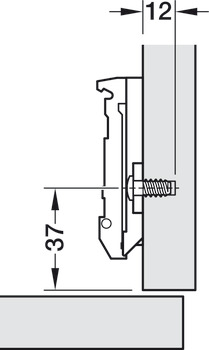

This mounting plate is suitable for drill holes of 5 mm in diameter and requires a drilling depth of 12 mm. It utilizes screws of 13.50 mm length for installation, with a screw distance of 32 mm and an edge distance of 37 mm. Additionally, it offers height adjustment via a worm gear of ±2 mm, making it user-friendly and adaptable to various needs.



The Cruciform mounting plate for Tiomos - 348.39.503 is designed to provide reliability and durability in your mounting tasks, making it a preferred choice for users. Enhance your mounting processes with Hafele's quality products.
