Furniture Hinges

Cruciform mounting plate for Tiomos - 348.39.502

HAFELE

Cruciform mounting plate for Tiomos - 348.39.502 by Hafele — A reliable and robust solution for mounting applications.

Properties

Product Code: 348.39.502
Category: Furniture Hinges

Material Properties

Used Material:
Steel/Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 1.3
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_27001_ENG
ISO_27001_TR
348.39.502_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

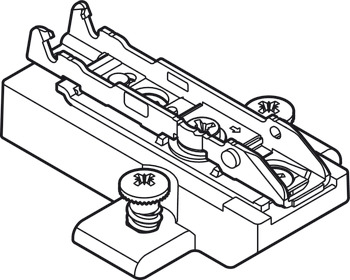

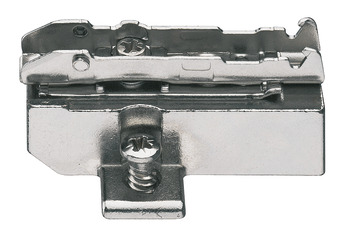

The Cruciform mounting plate for Tiomos - 348.39.502 by Hafele represents a refined fusion of quality and functionality. This mounting plate is specifically designed for Grass Tiomos concealed hinges, crafted from durable steel and zinc alloy. Its nickel-plated finish not only provides an aesthetic appeal but also ensures high resistance to corrosion.

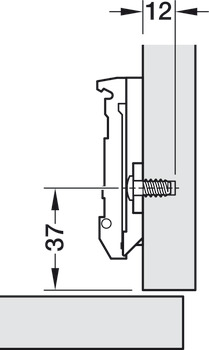

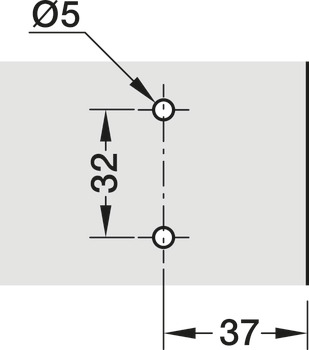

With a drill hole diameter of 5 mm and a drilling depth of 12 mm, the mounting plate facilitates easy installation, while the screw length of 13.50 mm ensures a secure connection. The 32 mm screw distance and 37 mm edge distance offer flexibility during installation, and the ±2 mm height adjustment feature allows for post-installation modifications. The clip system enhances the speed of the mounting process.

This mounting plate is ideal for both professional and DIY users. It provides a secure and robust solution for assembly, enhancing the durability of your furniture. With Hafele's quality, this product will simplify your mounting processes.
