Cruciform mounting plate for Tiomos - 348.39.501

HAFELE

Cruciform mounting plate for Tiomos - 348.39.501 by Hafele — This product provides excellent mounting support for Grass Tiomos concealed hinges.

Properties

Product Code: 348.39.501
Category: Furniture Hinges

Material Properties

Used Material:
Steel/Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 1.3
Width (cm): No Information
Height (cm): No Information
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
348.39.501_Safety notes
ISO_27001_ENG
ISO_9001_ENG
ISO_27001_TR
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Cruciform mounting plate for Tiomos - 348.39.501 by Hafele represents a refined fusion of quality and functionality. Made from robust steel and zinc alloy, this mounting plate ensures long-lasting durability. The nickel plating not only enhances its aesthetic appeal but also simplifies the installation process.

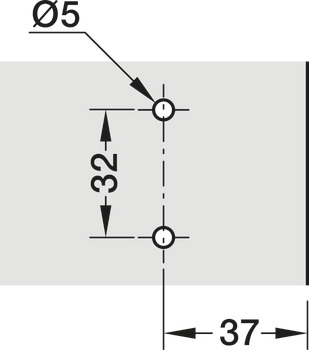

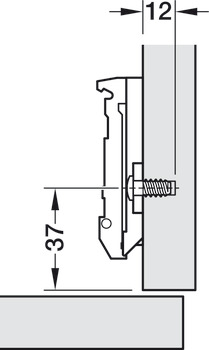

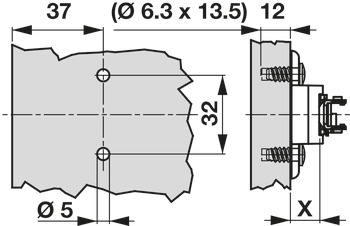

Designed with a drill hole diameter of 5 mm and a drilling depth of 12 mm, it comes with screws that are 13.50 mm long and a screw distance of 32 mm, making installation straightforward and efficient. Additionally, with an edge distance of 37 mm, it guarantees secure mounting. The height adjustment feature allows for ±2 mm adjustment via a worm gear, providing flexibility to the user.

This product stands out for its ease of installation and durability. Hafele's mounting plate perfectly meets the needs of users.
